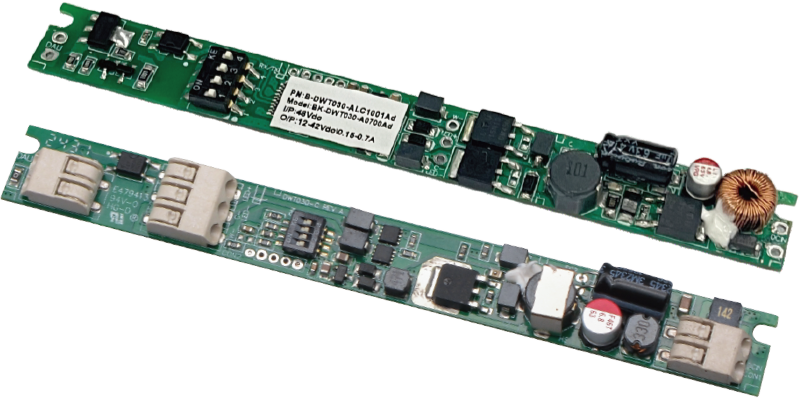

DWT series

CC Built-in tunable white driver(DC track light/DT8)

Features
·Support DALI-2 DT8 control
·Not polarity
·10-level current output can be realized by DIP-switch
·Soft dimming and flicker-free at any brightness, meets the new requirements of ErP certification
·Using HPC patented technology, at any dimming level, the brightness of the luminaries is the same
·Dimming range 1~100%, output current accuracy 3%
·Standby power input < 0.5W, meets the requirements of ErP certification
·Intelligent LED hot-plug protection function
·Suitable for STUCCHI standard housing
·SELV and Class III design, suitable for use outside of the luminare
·Passed CE,DALI-2 and other certifications

Parameters

Model

Input voltage

Output power

Output voltage

Output current

Efficiency

Ta( Chamber temperature)

Weight(g)

Dimension(mm)

BK-DWT022-A0600Ad

48VDC±5%

23.1W

12-42V

0.15-0.6A

92%

60℃

13

L124*W13.4*H9.5

Specifications

Dimension(unit:mm)

Item

Parameter

Rated input voltage

48VDC±5%

Protection type

Class |||

Output current accuracy

1%

Dimming range

1-100%

Power on time

<0.7s

Standby power

<0.5W

No load output voltage

48V

Flicker-free

Pst LM <1,SVM <0.4

Operation temperature

-20℃-+60℃

Protection class

IP20

Life time

Normal 100,000 hours

Warranty

5 years

Wiring diagram

Datasheet-[DC track light color temperature driver]-[BK-DWT series suffix d V1.0 EN]
