DaliSet Configuration Suite

·DaliSet configuration suite supports the reading,setting,and changing of DALI device parameters such as single address, group address,power-on level,fade time,fade rate,scene, and Bank information.Support GTIN,current level,color temperature and other parameters to read;Support on/off, level,color temperature and other quick control.

·The DaliSet configuration suite consists of DaliSet configuration software and DALI programmer.

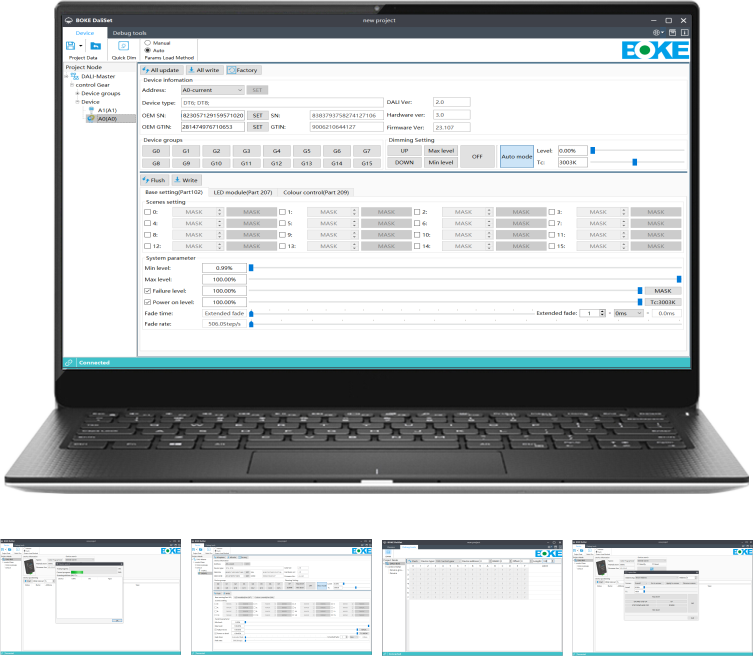

DaliSet Configuration software

BOKE DaliSet

Features
·Support new and expanded search for devices
·Support device address reading,setting, and changing
·Support group and scene reading and setting
·Read and set parameters such as power-on brightness, failure brightness and gradient time
·Support device Bank information reading and setting
·Supports quick dimming such as switch, brightness,color temperature, etc
·Supports data saving of device configuration projects
·DALI programming tools are required

Windows

Supports Windows 7/Windows 10/Windows 11 (32-bit/64-bit) Version V1.0.0.0

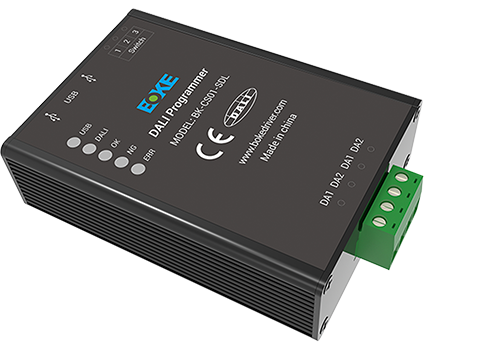

DALI programmer

BK-CS01-SDL

Features
·Configure parameters and functions of DALI devices
·Used with BOKE DaliSet software
·Support connection and configuration through DALI bus
·Support USB Type-B/C interface to link computers
·Support USB and DALI interface status indicators
·No need to install USB driver,convenient and fast
·Optional external bus power connection
·Support firmware upgrade
