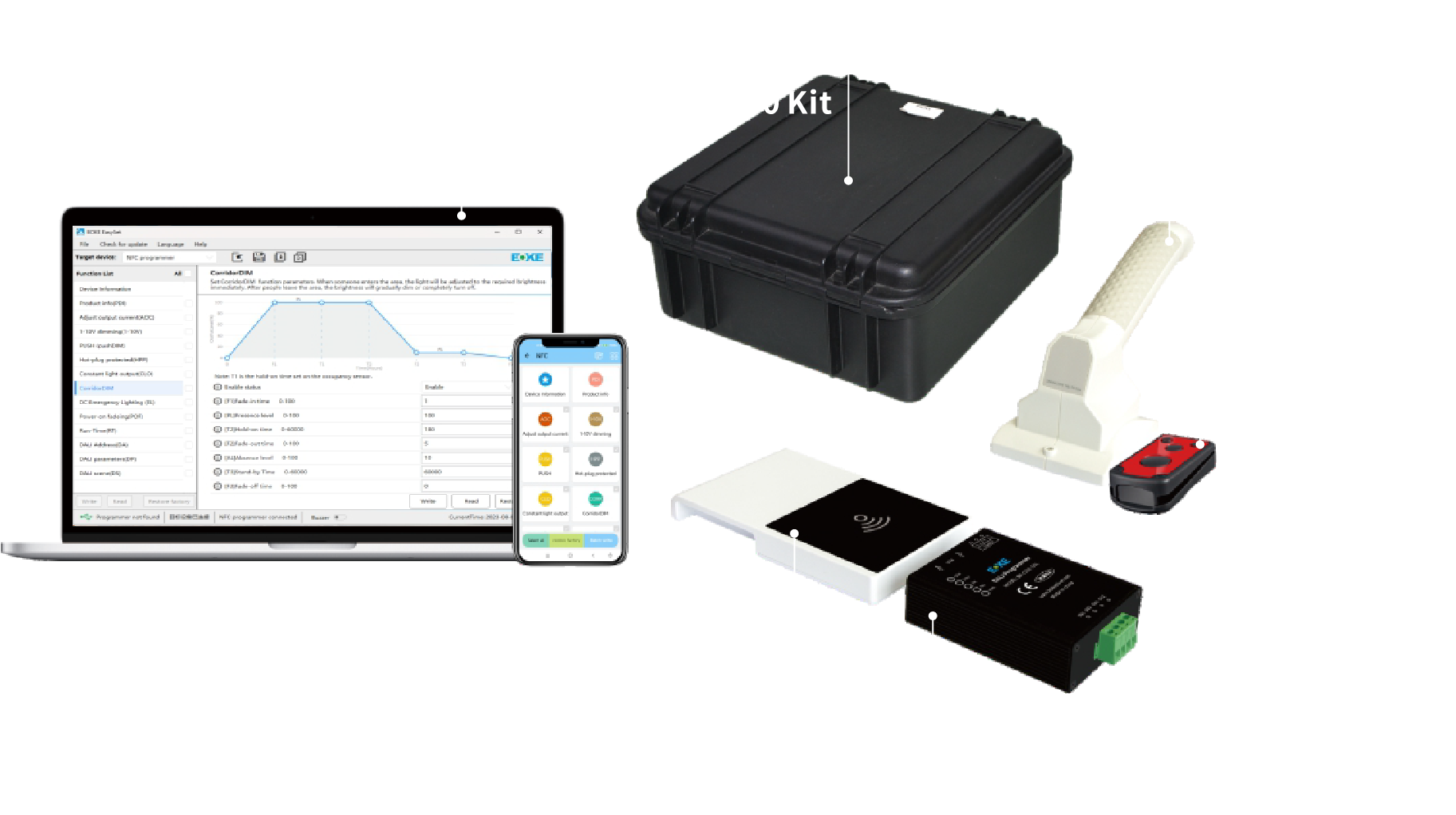

Programming Suit

Drivers and other devices support DALI interface or/and NFC interface programming. The programming items include adjusting output current (AOC), corridor dimming (cordorDIM), constant illumination output (CLO),Emergency lighting (EL), DALI address/group, DALI general parameters and scenes, etc. to achieve flexible configuration and adapt to various application requirements.

Programming is realized by the programmer and or programming software(EasySet).

Programming Items

EasySet(PC)

Features
·Configure the parameters and functions of the target device
·Use with DALI programmer and NFC programmer
·Using USB interface communication
·Support configuration file import and save
·Supports automatic drive recognition and configuration loading
·Support downloading configuration files to DALI programmer
· Support single or batch programming mode
·Support programmer firmware upgrade
· Support update check and upgrade
·Support Chinese and English languages

EasySet(APP)

Features
·Configure the parameters and functions of the target device through NFC
·Support output current adjustment, light decay compensation,corridor dimming and
other function settings
·Automatically identify the drive and load the configuration
·Support drive information reading
· Support single or batch programming mode
·Support Android,Hongmeng,Apple and other mobile phone systems
·Support APP update check and upgrade
·Support Chinese and English languages
·Support display theme switching
·Support Google Store,Apple Store,BOKE official website to download applications

DALI programmer

BK-CS01-SDL

Features
·Parameter and function configuration for DALI/1-10V driver
·Use with BOKE EasySet configuration software
·Support connection and configuration via DALI bus
·Supports USB online and USB offline configuration modes
·No need to install USB driver, convenient and fast
·Support single or batch programming
·Optional external bus power access
·Support firmware upgrade

NFC programmer

ID CPR30+

Features
·Configure parameters and functions for drives with NFC interface
·Use with BOKE EasySet configuration software
·Compliant with Zhaga Book 24 programmers and programming specifications
·Support single or batch programming
·Connect to computer via USB interface

NFC programmer

ID ISC-PRH101-USB

Features
·Configure parameters and functions for drives with NFC interface
·Use with BOKE EasySet configuration software
·Compliant with Zhaga Book 24 programmers and programming specifications
·Support single or batch programming
·Connect to computer via USB interface

NFC programmer

ID ISC-PRH101-USB

Features
·For use with BOKE EasySet programming software
·ZHAGA Book 25 Compliant
·Durable high capacity batteries can power devices for up to 16 hours
