DALI-2 dimmable driver

BHL series

DALI-2 DT6 or 1-10V/10V PWM/Rx, 10-level current output ,DIP-switch, 1-100%, Linear, SELV, Class I, CC and filcker-free output, 30~70W

DAL series

DALI-2 DT6+pushDIM ,16-level current output, DIP-switch, 1-100%, Linear, SELV, Class I, CC and filcker-free output, 30~80W

DGL series

DALI-2 DT8+pushDIM+pushCCT+ corridorDIM, DALI programming, CLO, 10-level current output, DIP-switch, 1-100%,  Linear, SELV, Class I, CC and filcker-free output, 42-60W

DGV series

DALI DT6 +pushDIM+12v aux power, 1-100% , High PF, Linear, SELV, Class I or Class II,  CV and filcker-free output, 60~200W, 24V/48V

DEL series

DALI-2 DT6 + pushDIM, 16-level current output, external DIP-switch, 1-100%, Independent, SELV, Class II, CC and filcker-free output, 10-60W

DDL series

DALI-2 DT6 + pushDIM+ corridorDIM, DALI/NFC programming, CLO+EL, Loop in Loop out, 16-level current output, external DIP-switch, 1-100%, Independent, SELV, Class II, CC and filcker-free output, 30-42W

DLL series

DALI-2 DT6 + pushDIM+corridorDIM+1~10V 3in1, DALI programming, CLO+EL, Loop in Loop out, Pluggable connectors of WAGO or Wieland, 10-level current output, DIP-switch, 1-100%, Independent, SELV, Class II, CC and filcker-free output, 42-52W

PUL-A series

DALI-2 DT6+pushDIM+1-10V 3in1, 10-level current output, DIP-switch, 1-100%, SELV, Class II, CC and filcker-free output, 30-60W

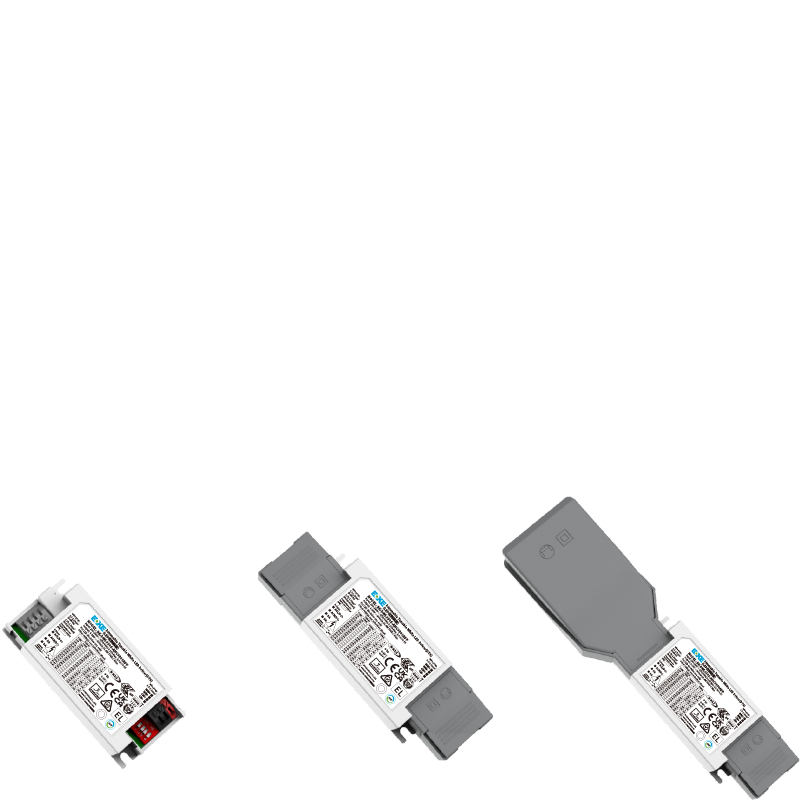

DWL series

DALI-2 DT8+pushDIM+pushCCT+ corridorDIM, DALI programming, CLO+EL, 10-level current output, DIP-switch, 1-100%, Independent, SELV, Class II, CC and filcker-free output, 42-60W

DML series

DALI-2 DT6 or +1~10V 3in1, DALI programming, IP67, Waterproof, Outdoor use available, Rubber wire, 1-100%, Independent, SELV, Class I or class II, CC and filcker-free output, 22-60W

BDL series

DALI-2 DT6 or or 1~10V 3in1, IP65, Waterproof, indoor use only, Rubber wire, 1-100%, Independent, SELV, Class II, CC and filcker-free output, 30-60W
