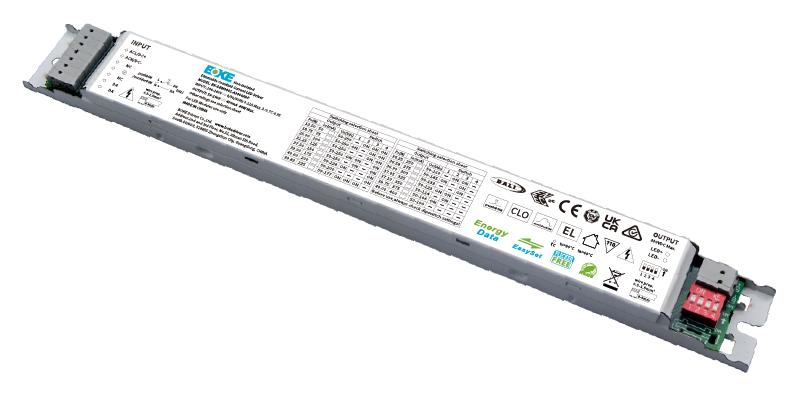

DBN(S)-A Sceries
Non-isolated Constant current linear driver
Features
·Input and output non-isolated
·Support DALI-2+pushDIM control
·16mm ultra-thin
·Support EnergyData function and energy-reporting reading (DALI Part 252)
·Support Luminaire data reading (DALI Part251), support diagnostics-maintenance reading (DALI Part253)
·Support advanced functions such as corridorDIM, EL, CLO
·The output current programming can be realized through the DALI interface
·Multi-level current output can be realized by DIP-switch
·Soft dimming and flicker-free at any brightness, meets the new requirements of ErP certification
·Using HPC patented technology, at any dimming level, the brightness of the luminaries is the same
·Standby power input<0.5W, meets the requirements of ErP certification
·High PF, high efficiency, low THD
·Suitable for built-in use of Class I lamps
·Compliance with Zhaga Book 13 standards
·Compliance with CE, ENEC, UKCA, RCM, DALI-2, EL and other certifications
·IP20 protection grade, indoor use
·Nominal life-time up to 100,000 h
·5.5-year guarantee
Parameters
Model | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-DBN040S-A0400ADP | 200-240VAC/DC | 40W | 50-250VDC | 0.05-0.4A | 0.98 | 92% | 7.5% | 60℃ | 90℃ | L280*W30*H16 |
BK-DBN080S-A0700ADP | 200-240VAC/DC | 80.5W | 50-250VDC | 0.1-0.7A | 0.95 | 93% | 7.5% | 60℃ | 90℃ | L360*W30*H16 |
Suffix DP：DALI-2 + pushDIM+EnergyData+EL+CLO+corridorDIM+DALI programmable
Specifications
Item | Parameter |
Rated voltage | 200-240VAC 200-240VDC |
Limited voltage | 180-264VAC 180-264VDC |
Overoltage protection | <380 VAC |
Protection class | Class I |
Output current accuracy | ±5% |
Dimming range | 1-100% |
Power on time | <0.7s(AC start),<0.7s(DC start),<0.3s(AC/DC switchover),<0.5s(Turn off ) |
Standby power | <0.5W |
No-load voltage | N/A |
Surge | L-N:2KV,L-FG/N-FG:2KV DALI-DALI:1KV |
Flicker-free | Pst LM <1,SVM <0.4 |
IP rating | IP20 |
Life time | Normal 100000 hours |
Warranty | 5.5 years |

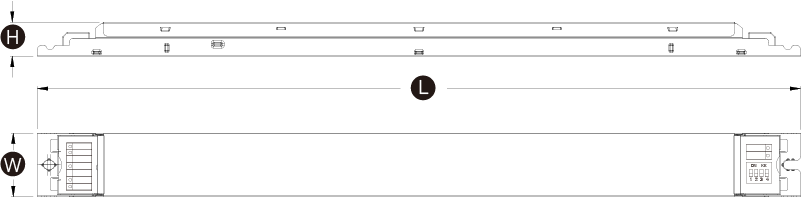

Dimension(unit:mm)

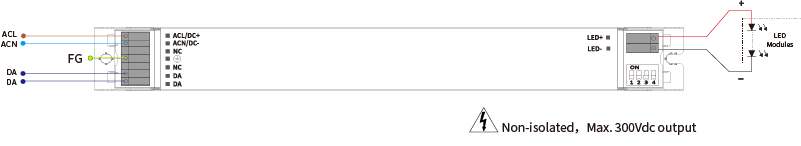

Wiring diagram
