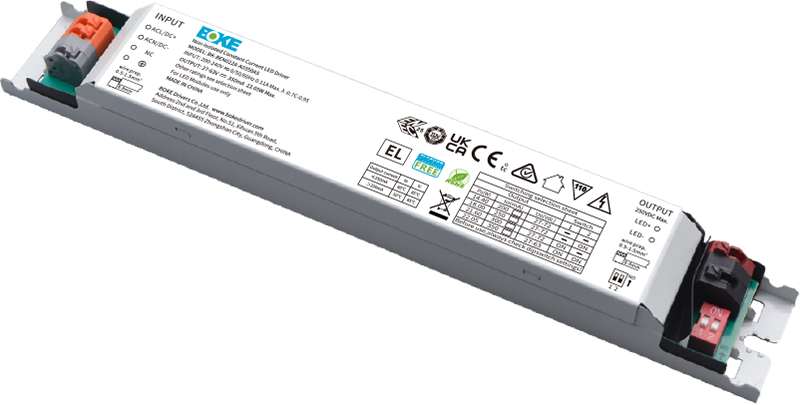

BEN(A) Series
Non-isolated CC linear driver
Parameters
Model | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-BEN022A-A0350AS | 200-240VAC | 22.05W | 39-72V | 0.2-0.35A | 0.97 | 88% | 9% | 50/60℃ | 85℃ | L210*W30*H21 |
BK-BEN040A-A0350AS | 200-240VAC | 39.9W | 50-133V | 0.2-0.35A | 0.96 | 92% | 8% | 50/60℃ | 85℃ | L210*W30*H21 |
BK-BEN060A-A0350AS | 200-240VAC | 60.2W | 80-200V | 0.2-0.35A | 0.95 | 93% | 10% | 50/60℃ | 85℃ | L210*W30*H21 |
BK-BEN080A-A0550AS | 200-240VAC | 79.75W | 50-216V | 0.2-0.35A | 0.98 | 94% | 7% | 60℃ | 90°C | L210*W30*H21 |
BK-BEN100A-A0800AS | 200-240VAC | 100W | 54-240V | 0.35-0.8A | 0.98 | 95% | 6% | 60℃ | 90°C | L280*W30*H21 |
BK-BEN150A-A1000AS | 200-240VAC | 150.1W | 54-240V | 0.35-1A | 0.98 | 96% | 6% | 60℃ | 90°C | L280*W30*H21 |
Suffix S：Integrated DIP switch
Specifications
Item | Parameter |
Rated input voltage | 200-240VAC/200-240VDC |
Limited voltage | 180-264VAC/180-264VDC |
Input votage shock | 380V |
Protection type | Class I |
Output type | Non-SELV(non-isolated) |
Output current accuracy | 5% |
Power on time | <0.5s |
No load output voltage | 250VDC |
Surge | L-N:2KV,L-FG/N-FG:2KV |
Flicker-free | Pst LM <1,SVM <0.4 |
Operation temperature | -20-50/60℃ |
Protection class | IP20 |
Life time | Normal 100,000 hours |
Warranty | 5.5 years |
Dimension(unit:mm)
Wiring diagram
