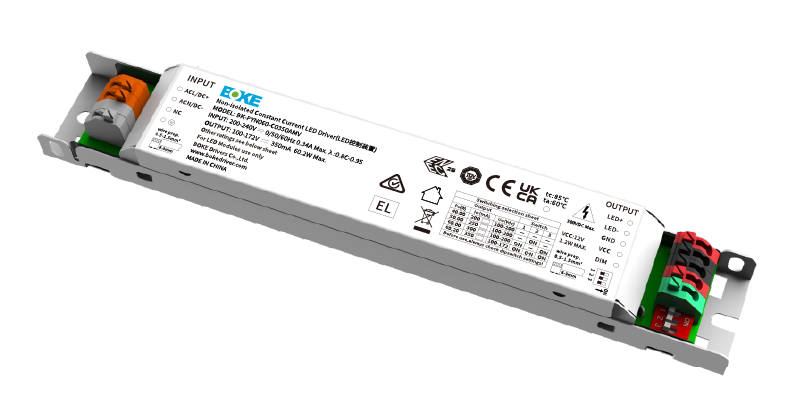

PYN-C series
Non-isolated CC linear dimmable driver
Features
– Input and output non-isolated
– Non-selv 12V power output
– Support 3.3V/5V/10V PWM dimming interface for control module or sensor dimming control
– Provide 12V 100mA auxiliary power supply to power control module or sensor
– Auxiliary 12V supports fast power-down feature
– 4-level current output can be realized by DIP-switch
– Soft dimming and flicker-free at any brightness
– High PF, high efficiency, low THD
– Suitable for built-in use of Class I lamps
– 5.5-year guarantee
Parameters
Mode | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-PYN022-C0350AMV | 200-240VAC/DC | 22.05W | 39-110VDC | 0.2-0.35A | 0.96 | 89.5% | 8% | 60℃ | 85℃ | L158*W30*H21 |
BK-PYN022-C0350AYV | 200-240VAC/DC | 22.05W | 39-110VDC | 0.2-0.35A | 0.96 | 89.5% | 8% | 60℃ | 85℃ | L158*W30*H21 |
BK-PYN042-C0350AMV | 200-240VAC/DC | 42W | 54-140VDC | 0.2-0.35A | 0.96 | 92.5% | 10% | 60℃ | 85℃ | L158*W30*H21 |
BK-PYN042-C0350AYV | 200-240VAC/DC | 42W | 54-140VDC | 0.2-0.35A | 0.96 | 92.5% | 10% | 60℃ | 85℃ | L158*W30*H21 |
BK-PYN060-C0350AMV | 200-240VAC/DC | 60.2W | 100-200VDC | 0.2-0.35A | 0.97 | 93.5% | 7% | 60℃ | 85℃ | L195*W30*H21 |
BK-PYN060-C0350AYV | 200-240VAC/DC | 60.2W | 100-200VDC | 0.2-0.35A | 0.97 | 93.5% | 7% | 60℃ | 85℃ | L195*W30*H21 |
Suffix MV： 0-10V/10V PWM dimming+12V auxiliary power
Suffix YV： 3.3V/5V/10V PWM dimming+12V auxiliary power
Specifications
Item | Parameter |
Rated input voltage | 200-240VAC 200-240VDC |
Limited voltage | 180-264VAC 180-264VDC |
Input votage shock | <380 VAC |
Protection type | Class I |
Output type | non-SELV |
Output current accuracy: | ±5% |
Power on time | <0.5s(AC start),<0.5s(DC start),<0.3s(AC/DC switchover),<0.5s(Turn off ) |
Standby power: | N/A |
No load output voltage: | 250VDC |
Surge | L-N:2KV,L-FG/N-FG:2KV |
Flicker-free | Flickering percent(IEEE 1789)=1.355%(100Hz), Flicker index(IEEE 1789)=0.003(100Hz), Pst LM = 0.026, SVM = 0.01 |
Operation temperature | -25°-60°C |
Protection class | IP20 |
Life time | Normal 100,000 hours |
Warranty | 5.5 years |

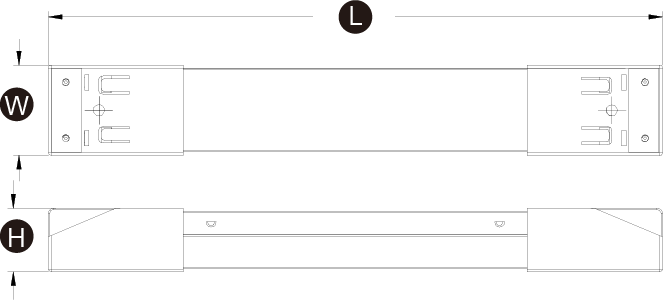

Dimension(unit:mm)

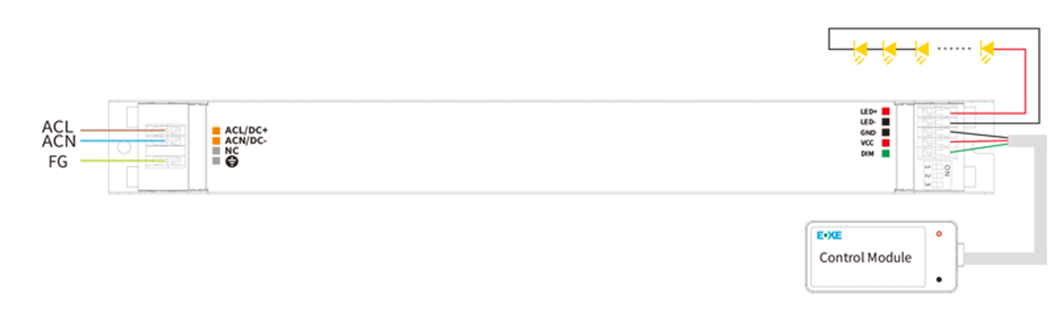

Wiring diagram
