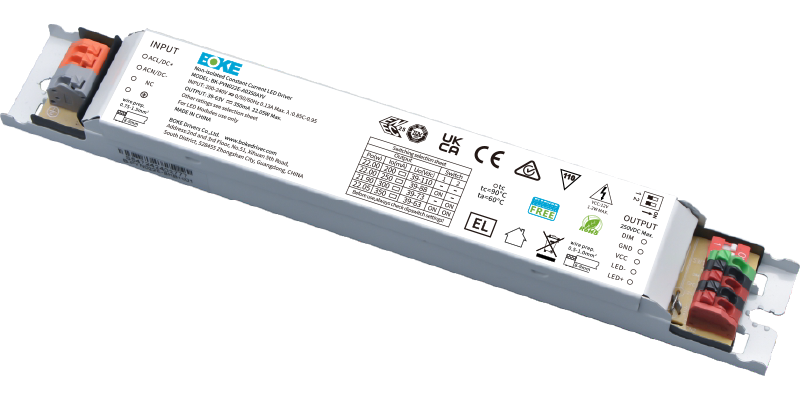

PYN(E) Series
Non-isolated CC linear dimmable driver
Features
·Inputand output non-isolated
·Non-selv 12V poweroutput
·Support 3.3V/5V/10VPWM dimming+12V auxiliary power
·Provide 12V 100m Aauxiliary power supply to power control module or sensor
·Auxiliary 12V supports fast power-down feature,and the control module can be reset by AC switch
·4/8-level current output can be realized by DlP-switch
·Soft dimmingand flicker-free at any brightness
·High PF, high efficiency, low THD
·Suitable for built-in use of Class I lamps
·Passed CE,ENEC,UKCA, RCM,EL and other certifications
·Compliance with Zhaga Book 13 standards
·lP20 protection grade,indoor use
·Nominal life-time up to 100,000 h
·5-year guarantee
Parameters
Model | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-PYN022E-A0350AYV | 200-240VAC | 22.05W | 39-110V | 0.2-0.35A | 0.96 | 90% | 11% | 60°C | 90℃ | L210*W30*H21 |
BK-PYN042E-A0350AYV | 200-240VAC | 42W | 50-210V | 0.2-0.35A | 0.98 | 92% | 9% | 60°C | 90℃ | L210*W30*H21 |
BK-PYN060E-A0350AYV | 200-240VAC | 60.2W | 50-216V | 0.2-0.35A | 0.98 | 93% | 8.5% | 60°C | 90℃ | L210*W30*H21 |
BK-PYN080E-A0550AYV | 200-240VAC | 80.3W | 50-216V | 0.2-0.55A | 0.98 | 94% | 9.5% | 60°C | 90℃ | L210*W30*H21 |
Suffix YV：3.3V/5V/10V PWM+12V+Integrated dialing
Specifications
Item | Parameter |
Rated voltage | 200-240VAC/200-240VDC |
Limited voltage | 180-264VAC 180-264VDC |
Input votage shock | 380V |
Protection type | Class I |
Output type | No SELV(non-isolated) |
Output current accuracy | 5% |
Power on time | <0.5s |
No load output voltage | 250VDC |
Surge | L-N:2KV,L-FG/N-FG:2KV |
Flicker-free | Pst LM <1,SVM <0.4 |
Operation temperature | -20-60℃ |
Protection class | IP20 |
Life time | Normal 100,000 hours |
Warranty | 5 years |
Dimension(unit:mm)
