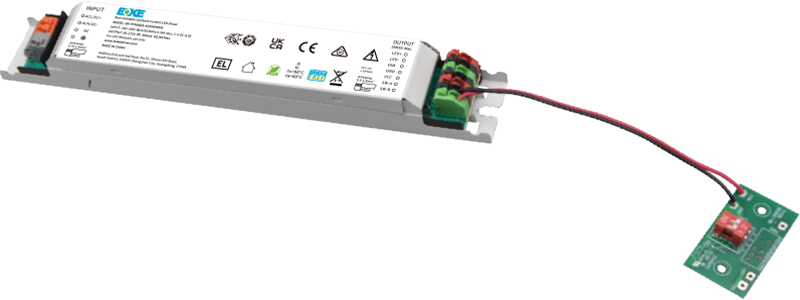

PYN(S)-A Series
Non-isolated Constant current linear dimmable driver
Features
·Input and output non-isolated
·Non-selv 12V power output
·Support 0-10V/10V PWM dimming+12V auxiliary power
·Provide 12V 100mA auxiliary power supply to power control moduleor sensor
·Auxiliary 12V supports fast power-down feature
·4-level current output can be realized by external DlP-switch
·Soft dimming and flicker-free at any brightness
·High PF, high efficiency, low THD
·Suitable for built-in use of Class l lamps
·Passed CE,ENEC,UKCA, RCM,EL and other certifications
·Compliance with Zhaga Book 13 standards
·IP20 protection grade, indoor use
·Nominal life-time up to 100,000 h
·5.5-year guarantee
Parameters
Model | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-PYN022S-A0350AMV | 200-240VAC | 22.05W | 39-110V | 0.2-0.35A | 0.96 | 89% | 10.5% | 60℃ | 90℃ | L210*W30*H21 |
BK-PYN022S-A0350AMVR | 200-240VAC | 22.05W | 39-110V | 0.2-0.35A | 0.96 | 89% | 10.5% | 60℃ | 90℃ | L210*W30*H21 |
BK-PYN022S-A0350AYV | 200-240VAC | 22.05W | 39-110V | 0.2-0.35A | 0.96 | 89% | 10.5% | 60℃ | 90℃ | L210*W30*H21 |
BK-PYN022S-A0350AYVR | 200-240VAC | 22.05W | 39-110V | 0.2-0.35A | 0.96 | 89% | 10.5% | 60℃ | 90℃ | L210*W30*H21 |
BK-PYN042S-A0350AMV | 200-240VAC | 42W | 50-210V | 0.2-0.35A | 0.98 | 92% | 8% | 60°C | 90℃ | L210*W30*H21 |
BK-PYN042S-A0350AMVR | 200-240VAC | 42W | 50-210V | 0.2-0.35A | 0.98 | 92% | 8% | 60°C | 90℃ | L210*W30*H21 |
BK-PYN042S-A0350AYV | 200-240VAC | 42W | 50-210V | 0.2-0.35A | 0.98 | 92% | 8% | 60°C | 90℃ | L210*W30*H21 |
BK-PYN042S-A0350AYVR | 200-240VAC | 42W | 50-210V | 0.2-0.35A | 0.98 | 92% | 8% | 60°C | 90℃ | L210*W30*H21 |
BK-PYN060S-A0350AMV | 200-240VAC | 60.2W | 50-216V | 0.2-0.35A | 0.98 | 93% | 8% | 60°C | 90℃ | L210*W30*H21 |
BK-PYN060S-A0350AMVR | 200-240VAC | 60.2W | 50-216V | 0.2-0.35A | 0.98 | 93% | 8% | 60°C | 90℃ | L210*W30*H21 |
BK-PYN060S-A0350AYV | 200-240VAC | 60.2W | 50-216V | 0.2-0.35A | 0.98 | 93% | 8% | 60°C | 90℃ | L210*W30*H21 |
BK-PYN060S-A0350AYVR | 200-240VAC | 60.2W | 50-216V | 0.2-0.35A | 0.98 | 93% | 8% | 60°C | 90℃ | L210*W30*H21 |
BK-PYN080S-A0550AMV | 200-240VAC | 80.3W | 50-216V | 0.2-0.35A | 0.98 | 94.5% | 8% | 60°C | 90℃ | L210*W30*H21 |
BK-PYN080S-A0550AMVR | 200-240VAC | 80.3W | 50-216V | 0.2-0.35A | 0.98 | 94.5% | 8% | 60°C | 90℃ | L210*W30*H21 |
BK-PYN080S-A0550AYV | 200-240VAC | 80.3W | 50-216V | 0.2-0.35A | 0.98 | 94.5% | 8% | 60°C | 90℃ | L210*W30*H21 |
BK-PYN080S-A0550AYVR | 200-240VAC | 80.3W | 50-216V | 0.2-0.35A | 0.98 | 94.5% | 8% | 60°C | 90℃ | L210*W30*H21 |
Suffix MV：0-10V/10V PWM+12V+Integrated dialing
Suffix MVR：0-10V/10V PWM+12V+External dialing
Suffix YV：3.3V/5V/10V PWM+12V+Integrated dialing
Suffix YVR：3.3V/5V/10V PWM+12V+External dialing
Specifications
Item | Parameter |
Rated voltage | 200-240VAC/200-240VDC |
Limited voltage | 180-264VAC 180-264VDC |
Input votage shock | 380V |
Protection type | Class I |
Output type | No SELV(non-isolated) |
Output current accuracy | 5% |
Power on time | <0.5s |
No load output voltage | 250VDC |
Surge | L-N:2KV,L-FG/N-FG:2KV |
Flicker-free | Pst LM <1,SVM <0.4 |
Operation temperature | -20-60℃ |
Protection class | IP20 |
Life time | Normal 100,000 hours |
Warranty | 5.5 years |
Dimension(unit:mm)
Wiring diagram
