BEN(E)-A Series
Non-isolated CC linear color temperature driver
Features
·Inputand output non-isolated
·3 levels of color temperature optional by sliding switch
·4/8-level current output can be realized by DlP-switch.
·Output flick-free, meets the new requirements of ErP certification.
·Built in active PFC function,high PF,low THD
·Dual-stage circuit design, work stable
·Withstand 380VAC high voltage short-time shock.
·Suitable for built-in use of Class I lamps
·Compliance with CE,ENEC,UKCA,RCM and other certifications
·Compliance with Zhaga Book 13 standards
·lP20 protection grade,indoor use
·Nominal life-time up to 100,000 h
·5.5-year guarantee
Parameters
Model | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-BEN022E-A0350AS | 200-240VAC | 22.05W | 39-72V | 0.2-0.35A | 0.97 | 88% | 9% | 50/60℃ | 85℃ | L210*W30*H21 |
BK-BEN040E-A0350AS | 200-240VAC | 39.9W | 50-133V | 0.2-0.35A | 0.96 | 92% | 8% | 50/60℃ | 85℃ | L210*W30*H21 |
BK-BEN060E-A0350AS | 200-240VAC | 60.2W | 80-200V | 0.2-0.35A | 0.95 | 93% | 10% | 50/60℃ | 85℃ | L210*W30*H21 |
BK-BEN080E-A0550AS | 200-240VAC | 79.75W | 50-216V | 0.2-0.35A | 0.98 | 94% | 7% | 60℃ | 90℃ | L210*W30*H21 |
Suffix S：Integrated DIP switch+color temperature optional by sliding switch
Specifications
Item | Parameter |
Rated input voltage | 200-240VAC/200-240VDC |
Limited voltage | 180-264VAC/180-264VDC |
Input votage shock | 380V |
Protection type | Class I |
Output type | Non-SELV(non-isolated) |
Output current accuracy | 5% |
Power on time | <0.5s |
No load output voltage | 250VDC |
Surge | L-N:2KV,L-FG/N-FG:2KV |
Flicker-free | Pst LM <1,SVM <0.4 |
Operation temperature | -20°C-60°C |
Protection class | IP20 |
Life time | Normal 100,000 hours |
Warranty | 5.5 years |

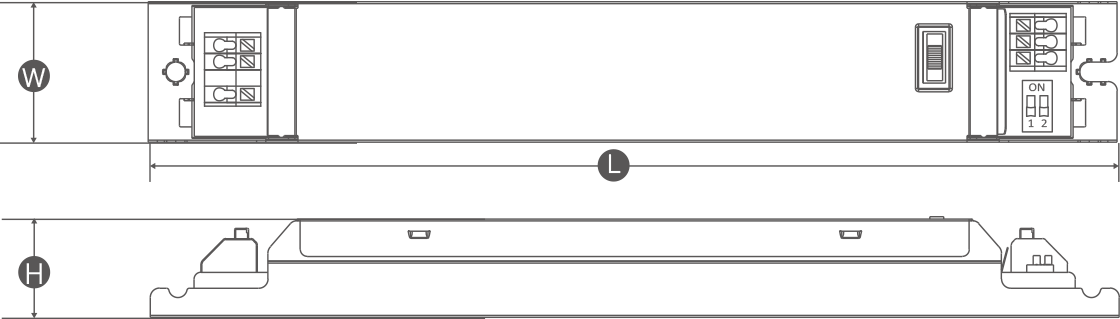

Dimension(unit:mm)

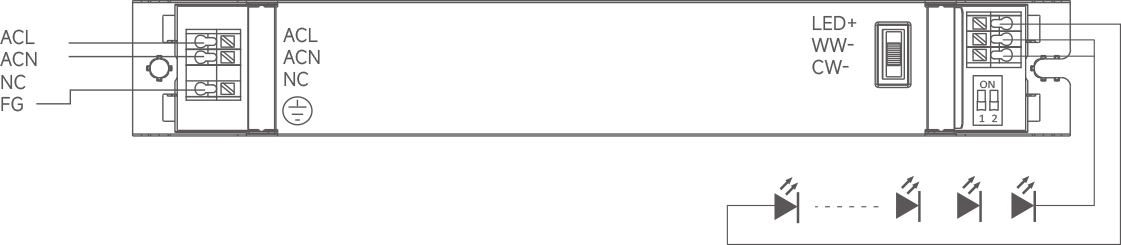

Wiring diagram
