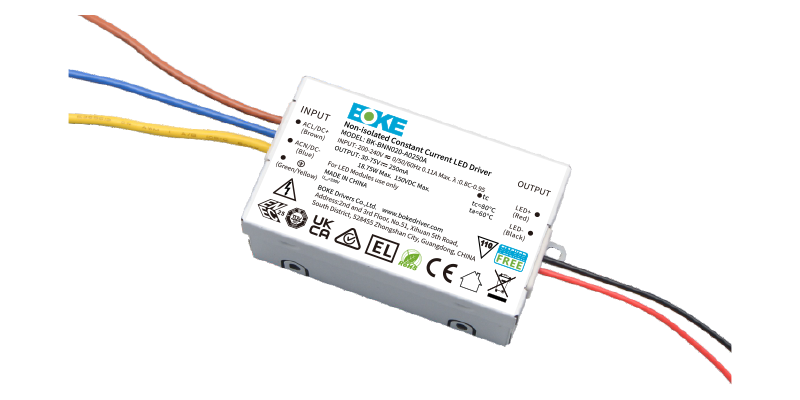

BNN series
Non-isolated CC driver
Features
·Input and output non isolated
·Output flick free, meets the new requirements of ErP certification.
·Built in active FPC function,high PF,low THD.
·Dual-stage circuit design, work stable
·Withstand 380VAC high voltage short-time shock
·Suitable for built-in use of Class I lamps.
·Fast startup, power-on startup time<0.5s
·Compliance with CE,ENEC,UKCA,RCM and other certifications
·IP20 protection grade,indoor use
·Nominal life-time up to 100,000 h
·5-year guarantee
Parameters
Model | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-BNN020-A0250A | 200-240VAC | 18.75W | 30-75V | 0.1-0.25A | 0.96 | 91% | 11% | 60℃ | 80℃ | L80.8*W44*H21 |
Specifications
Item | Parameter |
Rated input voltage | 200-240VAC/200-240VDC |
Limited voltage | 180-264VAC 200-264VDC |
Input votage shock | 380V |
Protection type | Class I |
Output type | SELV |
Output current accuracy | 士5%-士10% |
Power on time | <0.7s |
No load output voltage | <50V |
Surge | L-N:2KV |
Flicker-free | Pst LM <1,SVM <0.4 |
Operation temperature | -20℃-+60℃ |
Protection class | IP20 |
Life time | Normal 100,000 hours |
Warranty | 5.5 years |
Dimension(unit:mm)
Wiring diagram
