PGV series

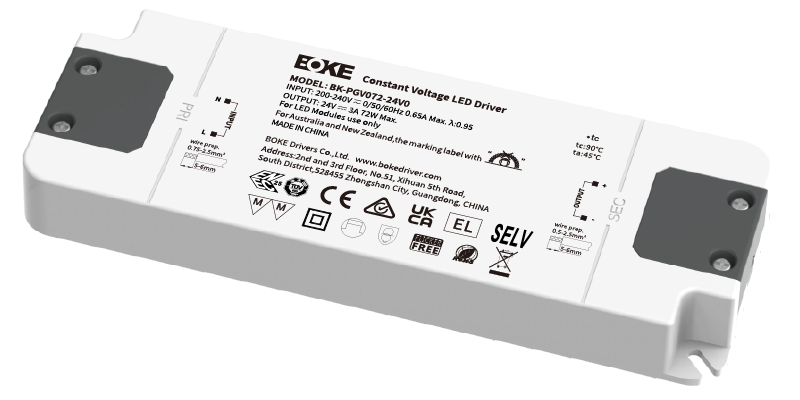

CV Independent on/off driver (Ultra-thin housing)
Features
·Ultra-thin shell design
· Flicker-free output,which meets the requirement of ErP standard
· Two-stage isolation design, safe and reliable
· High PF, high efficiency, low THD
· SELV and Class II design, suitable for use outside of the light
· Compliance with CE, ENEC, UKCA, RCM, CCC and other certifications
· IP20 protection grade, indoor use
· Nominal life-time up to 100,000 h
· 5.5-year guarantee
Parameters
Mode | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-PGV020-24V0 | 200-240VAC/DC | 20W | 24VDC | 0.83A | 0.98 | 84.5% | 8.5% | 45℃ | 85℃ | L129*W50*H13.5 |
BK-PGV024-12V0 | 200-240VAC/DC | 24W | 12VDC | 2A | 0.99 | 85% | 7.5% | 45℃ | 85℃ | L129*W50*H13.5 |
BK-PGV024-24V0 | 200-240VAC/DC | 24W | 24VDC | 1A | 0.99 | 85% | 7.5% | 45℃ | 85℃ | L129*W50*H13.5 |
BK-PGV030-12V0 | 200-240VAC/DC | 30W | 12VDC | 2.5A | 0.99 | 88% | 8.5% | 45℃ | 85℃ | L155*W50*H16 |
BK-PGV030-24V0 | 200-240VAC/DC | 30W | 24VDC | 1.25A | 0.99 | 88% | 8.5% | 45℃ | 85℃ | L155*W50*H16 |
BK-PGV036-12V0 | 200-240VAC/DC | 36W | 12VDC | 3A | 0.99 | 88% | 8.5% | 45℃ | 85℃ | L155*W50*H16 |
BK-PGV036-24V0 | 200-240VAC/DC | 36W | 24VDC | 1.5A | 0.99 | 88% | 8.5% | 45℃ | 85℃ | L155*W50*H16 |
BK-PGV048-12V0 | 200-240VAC/DC | 48W | 12VDC | 4A | 0.99 | 88% | 6% | 45℃ | 85℃ | L160*W57.5*H18 |
BK-PGV048-24V0 | 200-240VAC/DC | 48W | 24VDC | 2A | 0.99 | 88% | 6% | 45℃ | 85℃ | L160*W57.5*H18 |
BK-PGV060-12V0 | 200-240VAC/DC | 60W | 12VDC | 5A | 0.99 | 87% | 5.5% | 45℃ | 85℃ | L160*W57.5*H18 |
BK-PGV060-24V0 | 200-240VAC/DC | 60W | 24VDC | 2.5A | 0.99 | 87% | 5.5% | 45℃ | 85℃ | L160*W57.5*H18 |
BK-PGV060-48V0 | 200-240VAC/DC | 60W | 48VDC | 1.25A | 0.99 | 87% | 5.5% | 45℃ | 85℃ | L160*W57.5*H18 |
BK-PGV072-12V0 | 200-240VAC/DC | 72W | 12VDC | 6A | 0.99 | 89% | 5.5% | 45℃ | 85℃ | L185*W63.5*H22 |
BK-PGV072-24V0 | 200-240VAC/DC | 72W | 24VDC | 3A | 0.99 | 89% | 5% | 45℃ | 90℃ | L185*W63.5*H22 |
BK-PGV072-48V0 | 200-240VAC/DC | 72W | 48VDC | 1.5A | 0.99 | 89% | 5% | 45℃ | 90℃ | L185*W63.5*H22 |
BK-PGV100-12V0 | 200-240VAC/DC | 100W | 12VDC | 8.3A | 0.99 | 92.5% | 6% | 45℃ | 90℃ | L185*W63.5*H22 |
BK-PGV100-24V0 | 200-240VAC/DC | 100W | 24VDC | 4.2A | 0.99 | 92.5% | 6% | 45℃ | 90℃ | L185*W63.5*H22 |
BK-PGV150-24V0 | 200-240VAC/DC | 150W | 24VDC | 6.25A | 0.99 | 93% | 5% | 45℃ | 90℃ | L185*W63.5*H22 |
BK-PGV150-48V0 | 200-240VAC/DC | 150W | 48VDC | 3.13A | 0.99 | 93% | 5% | 45℃ | 90℃ | L185*W63.5*H22 |
Specifications
Item | Parameter |
Rated input voltage | 200-240VAC 200-240VDC |
Limited voltage | 180-264VAC 180-264VDC |
Input votage shock | <380 V AC |
Protection type | Class | |
Output type | Non-SELV |
Voltage accuracy | ±5% |
Power on time | <0.7s |
Surge | L-N:1KV |
Flicker-free | Flickering percent(IEEE 1789)=1.142%(100Hz), Flicker index(IEEE 1789)=0.006(100Hz), Pst LM = 0.033, SVM = 0.001 |
Operation temperature | -20-60℃ |
Protection class | IP20 |
Life time | Normal 100,000 hours |
Warranty | 5.5 years |
