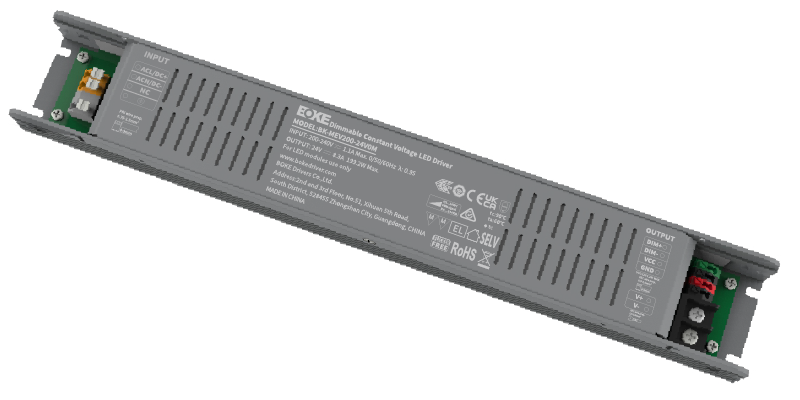

MEV series
CV Linear dimmable driver
Features
·Support isolate interface dimming 1-10V/10V PWM/Rx dimming+12v auxiliary power
·Provide 12V 100mA auxiliary power supply to power control module or sensor
·Soft dimming and flicker-free at any brightness
·Dimming range 1-100%,support multiple lights dimming
·Standby power input <0.5W,meets the requirements of ErP certification
·High PF,high efficiency,low THD
·SELV and Class I design,suitable for use outside the light
·Compliance with CE,UKCA,ENEC,RCM and other certifications
Parameters
Mode | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-MEV080-24V0M | 200-240VAC | 81.6W | 24V | 3.4A | 0.95 | 90.5% | 10% | 55℃ | 90℃ | L241.5*W48*H30 |
BK-MEV150-24V0M | 200-240VAC | 150W | 24V | 6.25A | 0.95 | 92.5% | 10% | 55℃ | 90℃ | L281.5*W48*H30 |
BK-MEV200-24V0M | 200-240VAC | 199.2W | 24V | 8.3A | 0.95 | 92.5% | 10% | 55℃ | 90℃ | L321.5*W48*H30 |
BK-MEV200-48V0M | 200-240VAC | 199.2W | 48V | 4.15A | 0.95 | 92.5% | 10% | 55℃ | 90℃ | L321.5*W48*H30 |
Suffix M：isolate 1-10V/10V PWM/Rx+12V
Specifications
Item | Parameter |
Rated input voltage | 200-240VAC |
Limited voltage | 180-264VAC |
Input votage shock | 380V |
Protection type | Class | |
Output type | SELV |
Voltage accuracy | 5% |
Power on time | <0.5s |
Surge | L-N:2KV,L/N-FG:2KV |
Flicker-free | Pst LM <1,SVM <0.4 |
Operation temperature | -20°C-60°C |
Protection class | IP20 |
Life time | Normal 100,000 hours |
Warranty | 5 years |
Dimension(unit:mm)
Wiring diagram
Suffix M：isolate 1-10V/10V PWM/Rx+12V
