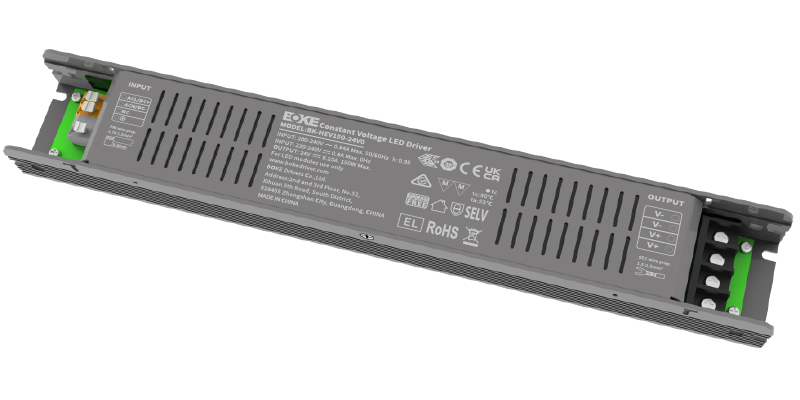

HEV series

CV Linear on/off driver



Features
·Suitable for constant voltage lights or light strips
·Linear shape design,easy to install
·Optional DC12V/24V/48V constant voltage output
·Flicker-free output,which meets the requirement of ErP standard
·Standby power input <0.5W,meets the requirements of ErP certification
·High PF,high efficiency and low THD
·Certification in accordance with LED lighting standards
·Compliance with CE,ENEC,RCM,CCC and other certifications

Parameters

Mode

Input voltage

Output power

Output voltage

Output current

PF

Efficiency

THD

Ta

Tc

Dimension(mm)

BK-HEV080-24V0

200-240VAC

81.6W

24V

3.4A

0.98

91.5%

5%

55℃

90℃

L289*W48*H30

BK-HEV150-24V0

200-240VAC

150W

24V

6.25A

0.98

92.5%

5%

55℃

90℃

L289*W48*H30

BK-HEV200-24V0

200-240VAC

199.2W

24V

8.3A

0.99

93%

5%

55℃

90℃

L329*W48*H30

BK-HEV200-48V0

200-240VAC

199.2W

48V

4.15A

0.99

93%

5%

55℃

90℃

L329*W48*H30

Specifications

Item

Parameter

Rated input voltage

200-240VAC

Limited voltage

180-264VAC

Input votage shock

380V

Protection type

Class |

Output type

SELV

Voltage accuracy

3%/5%

Power on time

<0.5s

Surge

L-N:2KV,L/N-FG:2KV

Flicker-free

Pst LM <1,SVM <0.4

Operation temperature

-20°C-50°C

Protection class

IP20

Life time

Normal 100,000 hours

Warranty

5 years

Dimension(unit:mm)

Wiring diagram

Datasheet-[CV on off driver]-[BK-HEV series V1.2 EN]
