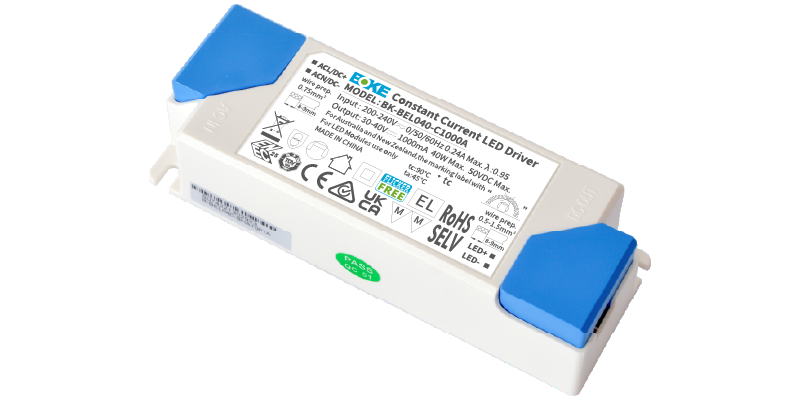

BEL series

CC Independent on/off driver

Features

·Flicker-free output,which meets the requirement of ErP standard
·Screw-free design,easy wiring
·Pushable strain relief design,easy to crimp and install
·Compact housing design
·Dual-stage circuit design,work stable
·High PF,high efficiency
·With SCP/OTP protection
·SELV and Class || design,suitable for use outside of the light
·Passed CE,UKCA,ENEC-TUV,RCM,CCC,EL and other certifications

Parameters

Mode

Input voltage

Output power

Output voltage

Output current

PF

Efficiency

THD

Ta

Tc

Weight(g)

Dimension(mm)

BK-BEL009-B0250A

200-240VAC

10.5W

30-42V

0.15-0.25A

0.95

83%

15%

60℃

85℃

54

L95*W36.5*H24

BK-BEL013-B0300A

200-240VAC

12.6W

30-42V

0.26-0.30A

0.95

83%

15%

60℃

85℃

54

L95*W36.5*H24

BK-BEL013-B0350A

200-240VAC

14.0W

30-40V

0.31-0.35A

0.95

83%

15%

60℃

85℃

54

L95*W36.5*H24

BK-BEL018-A0400A

200-240VAC

16.8W

28-42V

0.30-0.40A

0.95

86%

15%

60℃

85℃

65

L114.5*W41*H24.5

BK-BEL018-A0450A

200-240VAC

18.0W

28-40V

0.41-0.45A

0.95

86%

15%

60℃

85℃

65

L114.5*W41*H24.5

BK-BEL022-A0500A

200-240VAC

21.0W

28-42V

0.45-0.50A

0.95

87%

15%

60℃

85℃

65

L114.5*W41*H24.5

BK-BEL022-A0550A

200-240VAC

22.0W

28-40V

0.51-0.55A

0.95

87%

15%

60℃

85℃

65

L114.5*W41*H24.5

BK-BEL022-A0600A

200-240VAC

22.8W

28-38V

0.56-0.60A

0.95

87%

15%

60℃

85℃

95

L119*W42.5*H2

BK-BEL040-B0950A

200-240VAC

39.9W

30-42V

0.60-0.95A

0.95

87%

15%

45℃

90℃

102

L119*W42.5*H2

BK-BEL040-B1000A

200-240VAC

40.0W

30-40V

0.96-1.00A

0.95

87%

15%

45℃

90℃

102

L119*W42.5*H2

BK-BEL050-A1200A

200-240VAC

50.4W

28-42V

1.00-1.20A

0.95

88%

15%

45℃

90℃

151

L135*W45*H29

BK-BEL050-A1250A

200-240VAC

50.4W

28-40V

1.21-1.25A

0.95

88%

15%

45℃

90℃

151

L135*W45*H29

BK-BEL060-A1500A

200-240VAC

63.0W

28-42V

1.20-1.40A

0.95

89%

15%

45℃

90℃

195

L156*W50*H38

BK-BEL060-A1550A

200-240VAC

62.0W

28-40V

1.41-1.50A

0.95

89%

15%

45℃

90℃

195

L156*W50*H38

BK-BEL060-A1650A

200-240VAC

62.7W

28-38V

1.51-1.65A

0.95

89%

15%

45℃

90℃

195

L156*W50*H38

Specifications

Item

Parameter

Rated input voltage

200-240VAC/200-240VDC

Limited voltage

180-264VAC/180-264VDC

Input votage shock

380V

Protection type

Class ||

Output type

SELV

Output current accuracy

5%

Power on time

<0.5s

No load output voltage

<50V

Surge

L-N:2KV

Flicker-free

Pst LM <1,SVM <0.4

Operation temperature

-20℃-+45℃

Protection class

IP20

Life time

Normal 100,000 hours

Warranty

5 years

Dimension(unit:mm)

Wiring diagram

BEL series 009-A 013-A V1.0

BEL series 009-B BEL013-B BEL018-A BEL022-A BEL040-B V3.5

BEL series 040 V3.4

BEL series 040-C V1.0
