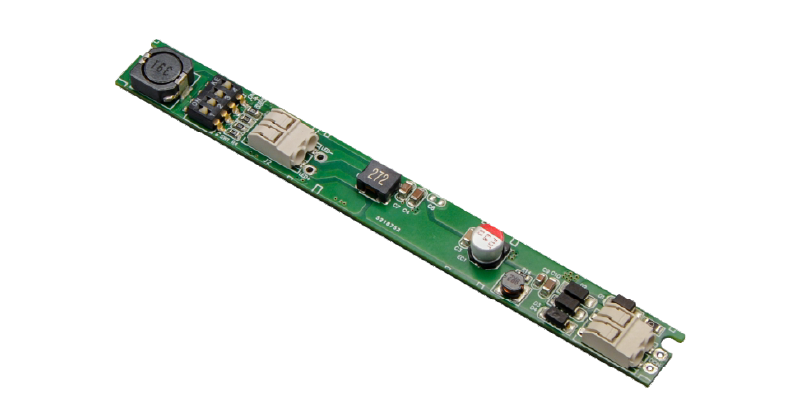

BET-B Series
DC track light driver
Features
·No polarity of input
·8-level current output can be realized by DIP-switch
·Flicker-free output,which meets the requirement of ErP standard
·Output current accuracy<5%
·Suitable for STUCCHI standard housing
·SELV and Class III design,suitable for use outside of the luminare
·Compliance with CE and other certifications
·IP20 protection grade,indoor use
·Nominal life-time up to 100,000 h
·5-year guarantee
Parameters
Mode | Input voltage | Output power | Output voltage | Output current | Efficiency | Ta | Dimension(mm) |
BK-BET030-B0400AS | 48VDC±5% | 16.8W | 12-42VDC | 0.15-0.4A | 92% | 45℃ | L125*W13.5*H7 |
BK-BET030-B0800AS | 48VDC±5% | 30.4W | 12-42VDC | 0.45-0.8A | 94% | 45℃ | L125*W13.5*H7 |
Specifications
Item | Parameter |
Rated input voltage | 48VDC±5% |
Protection type | Class ||| |
Output current accuracy | 5% |
Standby power | <0.5s |
No load output voltage | 48V |
Flicker-free | Flickering percent(IEEE 1789)=0.079%(100Hz), Flicker index(IEEE 1789)=0.001(100Hz), Pst LM = 0.001, SVM = 0.001 |
Operation temperature | -20-45℃(With package) |
Protection class | IP20 |
Life time | Normal 100,000 hours |
Warranty | 5 years |

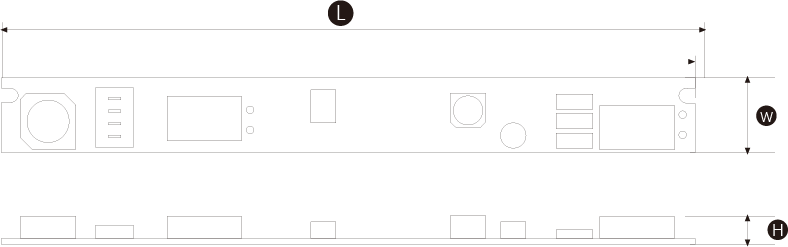

Dimension(unit:mm)
