DET series

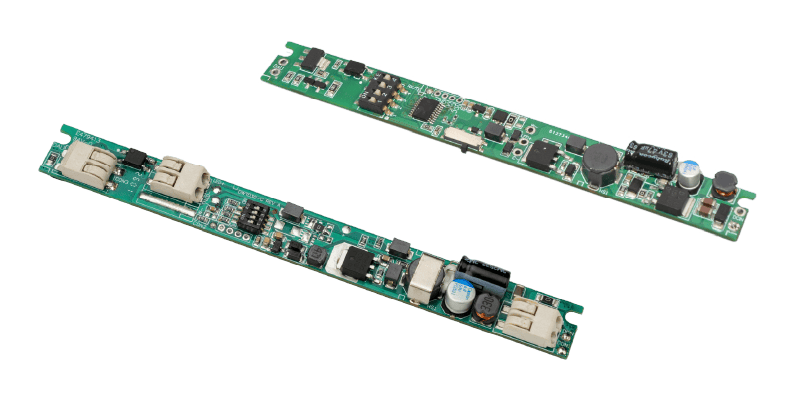

DC track light dimmable driver(DC track light/DT6)
Features
· Support DALI-2 DT6 dimming/control mode
· No polarity of input
· Full-range AM Dimming
· 3 levels of color temperature optional by sliding switch
· 16-level current output can be realized by DIP-switch
· Soft dimming and flicker-free at any brightness, meets the new requirements of ErP certification
· Using HPC patented technology, at any dimming level, the brightness of the luminaries is the same
· Dimming range 0.1%~100%, output current accuracy 2%
· Standby power input <0.5W, meets the requirements of ErP certification
· Intelligent LED hot-plug protection function
· Suitable for STUCCHI standard housing
· SELV and Class III design, suitable for use inside/outside of the luminaire
· Compliance with CE, DALI-2 and other certifications
· Nominal life-time up to 100,000 h
· 5.5-year guarantee
Parameters
Model | Input voltage | Output power | Output voltage | Output current | Efficiency | Ta( With package) | Dimension(mm) |
BK-DET030-D0800Bd | 48VDC±5% | 30.4W | 2.5-42V | 0.1-0.8A | 92.5% | 45℃ | L125*W13.7*H8.5 |
BK-DET030-E0800AD | 48VDC±5% | 30.4W | 12-42V | 0.1-0.8A | 92.5% | 45℃ | L125*W13.7*H10.5 |
BK-DET030-F0800AD | 48VDC+5% | 30.4W | 2.5-42V | 0.1-0.8A | 94% | 45°C | L125*W13.7*H10.5 |
BK-DET030-F0800AD | 48VDC+5% | 30.4W | 2.5-42V | 0.1-0.8A | 94% | 45°C | L125*W13.7*H10.5 |
Specifications
Item | Parameter |
Rated input voltage | 48VDC±5% |
Protection type | Class ||| |
Output current accuracy | 1% |
Dimming range | 1-100% |
Power on time | <0.7s |
Standby power | <0.5W |
No load output voltage | 50V |
Flicker-free | Pst LM <1,SVM <0.4 |
Operation temperature | -20℃-+60℃ |
Protection class | IP20 |
Life time | Normal 100,000 hours |
Warranty | 5.5 years |
Dimension(unit:mm)
Wiring diagram
