DBTE(S) Series
DC track light color temperature driver
Features
·Support DALI-2 DT8 control
·Not polarity
·Multi-level current output can be realized by DIP-switch
·Soft dimming and flicker-free at any brightness, meets the new requirements
of ErP certification
·Using HPC patented technology, at any dimming level, the brightness ofthe luminaries is the same
·Standby power input < 0.5W, meets the requirements of ErP certification
·Intelligent LED hot-plug protection function
·Suitable for STUCCHI standard housing
·SELV and Class III design, suitable for use outside of the luminare
·5.5-year guarantee
Parameters
Model | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-DBET030S-ACE0700AS | 48VDC | 29.4W | 2.5-42VDC | 0.1-0.7A | N/A | 92% | N/A | 45℃ | N/A | L113.5*W8*H5 |
specigications
Item | Parameter |
Rated input voltage | 48VDC±5% |
Limited voltage | N/A |
Input votage shock | N/A |
Protection type | Class III |
Output type | SELV |
Output current accuracy | ±2% |
Dimming range | N/A |
Power on time | <0.6s(DC start),<0.5s(Turn off ) |
No load output voltage | N/A |
Surge | N/A |
Flicker-free | Flickering percent(IEEE 1789)=0.058%(100Hz),Flicker index(IEEE 1789)=0.001(100Hz), Pst LM = 0.001, SVM = 0.001 |
Operation temperature | -20-45℃ |
Protection class | N/A |
Life time | Normal 100,000 hours |
Warranty | 5.5 years |

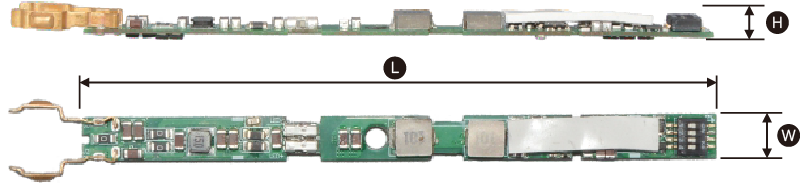

Dimension(unit:mm)

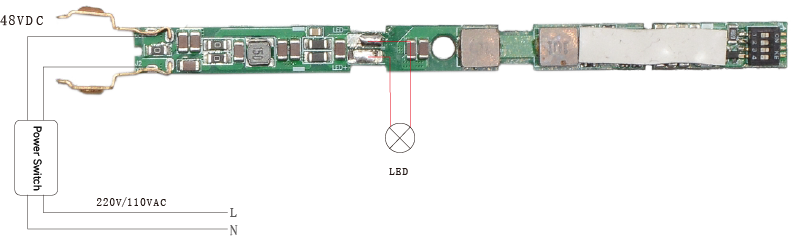

Wiring diagram
