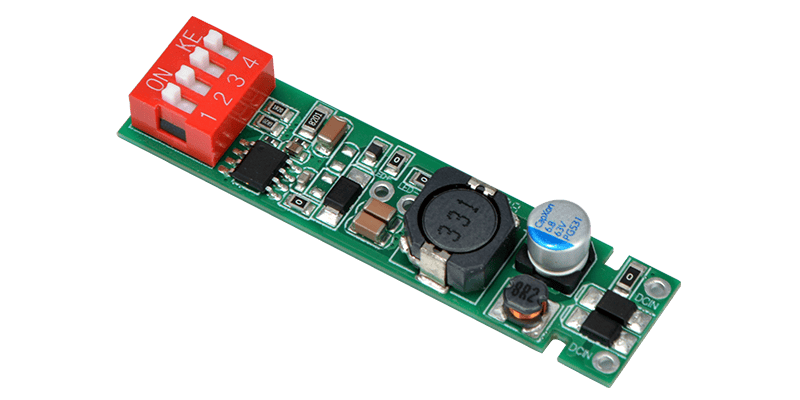

BET-A series
DC track light driver(DIP switch output)
Features
– No polarity of input
– Multi-level current output can be realized by DIP-switch
– Flicker-free output,which meets the requirement of ErP standard
– Output current accuracy < 5%
– Suitable for STUCCHI standard housing
– SELV and Class III design, suitable for use outside of the luminaire
– 5.5-year guarantee
Parameters
Mode | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-BET030-A0700AS | 48VDC | 29.4W | 2.5-42VDC | 0.1-0.7A | N/A | 94% | N/A | 45℃ | N/A | L58*W14*H10 |
Suffix S： DIP switch output
Specifications
Item | Parameter |
Rated input voltage | 48VDC±5% |
Limited voltage | N/A |
Input votage shock | N/A |
Protection type | Class III |
Output type | SELV |
Output current accuracy: | ±5% |
Power on time | <0.5s(AC start),<0.5s(Turn off ) |
Standby power: | N/A |
No load output voltage: | 48VDC |
Surge | N/A |
Flicker-free | Flickering percent(IEEE 1789)=0.03%(100Hz), Flicker index(IEEE 1789)=0.001(100Hz), Pst LM = 0.001, SVM = 0.001 |
Operation temperature | -20°-45°C |
Protection class | IP20 |
Life time | Normal 100,000 hours |
Warranty | 5.5 years |

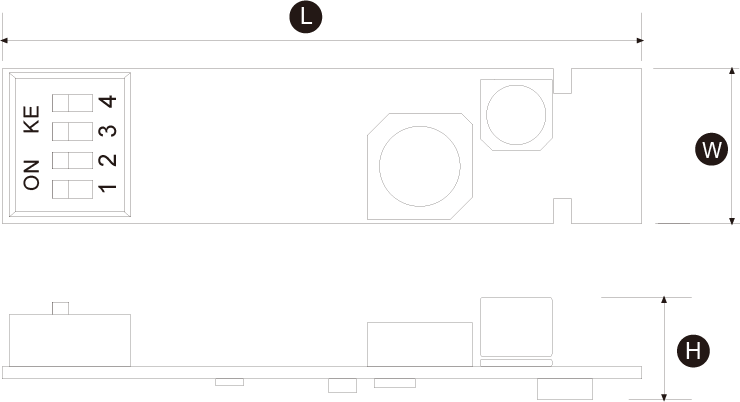

Dimension(unit:mm)
