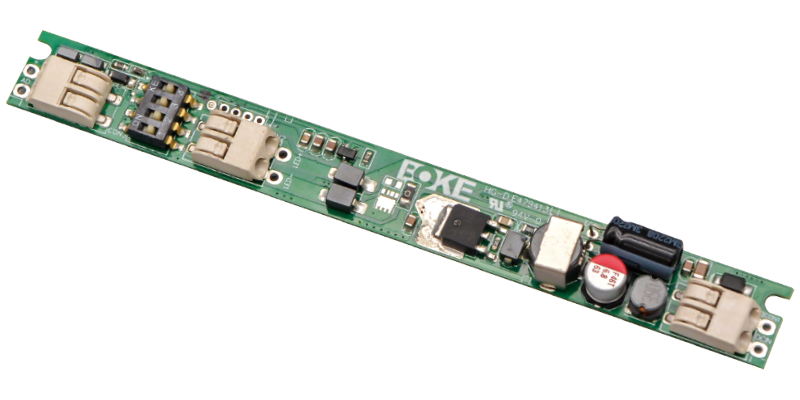

MET Series
DC track light dimmable driver
Features
·Support1-10V/10V PWM/Rx dimming mode
·Not polarity
·16-level current output can be realized by DlP-switch
·Soft dimming and flicker-free at any brightness, meets the new requirements of ErP certification
·Using HPC patented technology, at any dimming level, the brightness of the luminaries is the same
·Dimming range 0.1~100%,output current accuracy 2%
·Standby power input<0.5W,meets the requirements of ErP certification
·Intelligent LED hot-plugprotection function
·Suitablefor STUCCHI standard housing
·SELV and Class lll design, suitable foruse outside of the luminare
·Compliance with CE,DALI-2 and other certifications
·IP20 protection grade,indoor use
·Nominal life-time up to 100,000 h
·5.5-year guarantee
Parameters（Fixed output）
Model | Input voltage | Output power | Output voltage | Output current | Efficiency | Ta( Chamber temperature) | Dimension(mm) |
BK-MET030-A0800AM | 48VDC+5% | 30.4W | 12-42V | 0.1-0.8A | 93.5% | 45℃ | L125*W13.7*H8.5 |
Specifications
Item | Parameter |
Rated input voltage | 48VDC±5% |
Protection type | Class ||| |
Output current accuracy | 2% |
Dimming range | 0.1-100% |
Power on time | <0.7s |
Standby power | <0.5W |
No load output voltage | 48V |
Flicker-free | Pst LM <1,SVM <0.4 |
Operation temperature | -20℃-+60℃ |
Protection class | IP20 |
Life time | Normal 100,000 hours |
Warranty | 5.5 years |

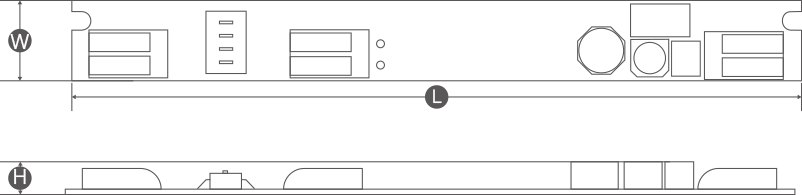

Dimension(unit:mm)

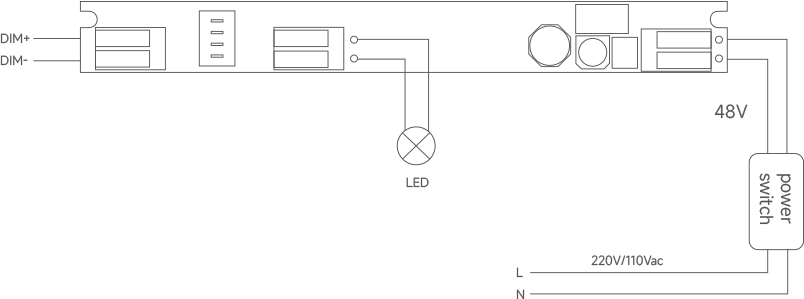

Wiring diagram
