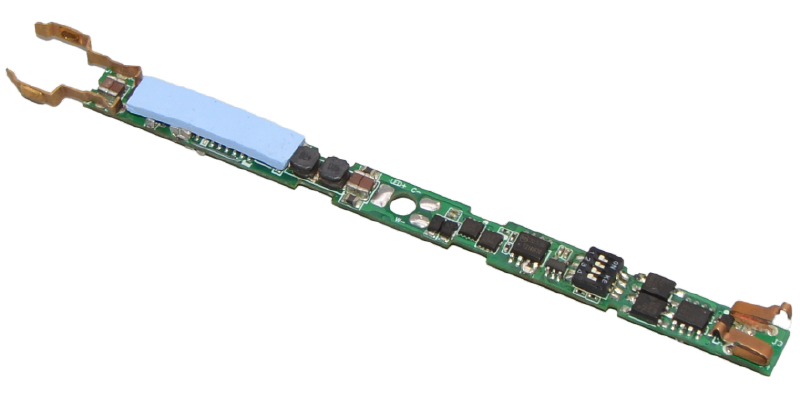

DDWT(S) Series
DC track light color temperature driver
Features
·Support DALI-2 DT8 control
·Not polarity
·Multi-level current output can be realized by DIP-switch
·Soft dimming and flicker-free at any brightness, meets the new requirements
of ErP certification
·Using HPC patented technology, at any dimming level, the brightness ofthe luminaries is the same
·Standby power input < 0.5W, meets the requirements of ErP certification
·Intelligent LED hot-plug protection function
·Suitable for STUCCHI standard housing
·SELV and Class III design, suitable for use outside of the luminare
·5.5-year guarantee
Parameters
Model | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-DDWT024S-ACE0600AD | 48VDC | 25.2W | 2.5-42VDC | 0.1-0.6A | N/A | 93% | N/A | 45℃ | N/A | L113.5*W8*H5 |
Series suffix D:DALI-2 DT8
Specigications
Item | Parameter |
Rated input voltage | 48VDC±5% |
Limited voltage | N/A |
Input votage shock | N/A |
Protection type | Class III |
Output type | SELV |
Output current accuracy | ±2% |
Dimming range | 1%-100% |
Power on time | <0.6s(DC start),<0.5s(Turn off ) |
No load output voltage | N/A |
Surge | L-N:2KV,L-FG/N-FG:2KV |
Flicker-free | Pst LM <1,SVM <0.4 |
Operation temperature | -20-45℃ |
Protection class | IP20 |
Life time | Normal 100,000 hours |
Warranty | 5.5 years |

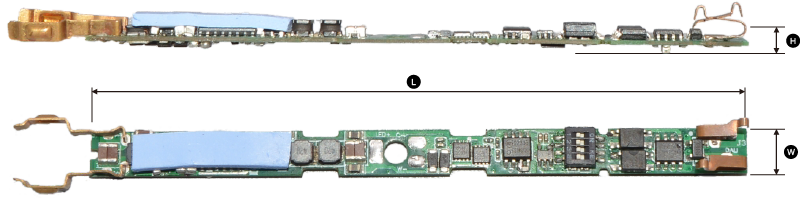

Dimension(unit:mm)
Wiring diagram
