Features
·Support DALl-2+pushDlM+pushCCT mode
·Support EnergyData function and energy-reporting reading(DALI Part 252)
·Support Luminaire data reading(DALI Part251),support diagnostics-maintenance reading(DALI Part 253)
·Support advanced functions such as corridorDlM,EL,CLO
·Theoutput current programming can berealized through the DALl interface
·16-level current output can be realized by DlP-switch

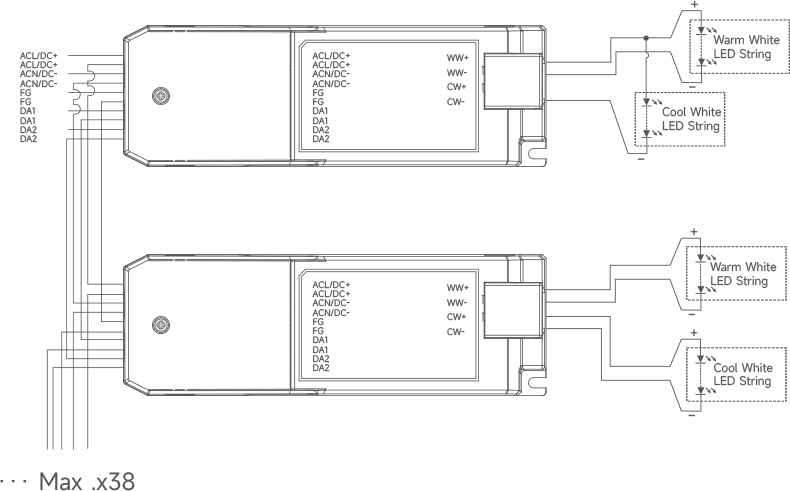

·Dual input terminal design,support loop-in and loop-out wiring without junction box
·Soft dimming and flicker free at any brightness, meets the new requirements of ErP certifi cation
·Using HPC patented technology, at any dimming level, the brightness of the lights is the same
·Stand by power input<0.5W,meets the requirements of ErP certification
·High PF, high efficiency, low THD
·Screw-free and pressing type strain relief, supports thicker cablesand is easier to install
·Independent input and output strain relief, stronger wiring
·Intelligent LED hot-plug protection function
·SELV and Class ll design,suitable foruse outside of the light
·Compliance with CE,ENEC,UKCA,RCM,CCC,DALI-2,EL and other certifications
·IP20 protection grade,indoor use
·Nominallife-time up to 100,000 h
·5.5-year guarantee
