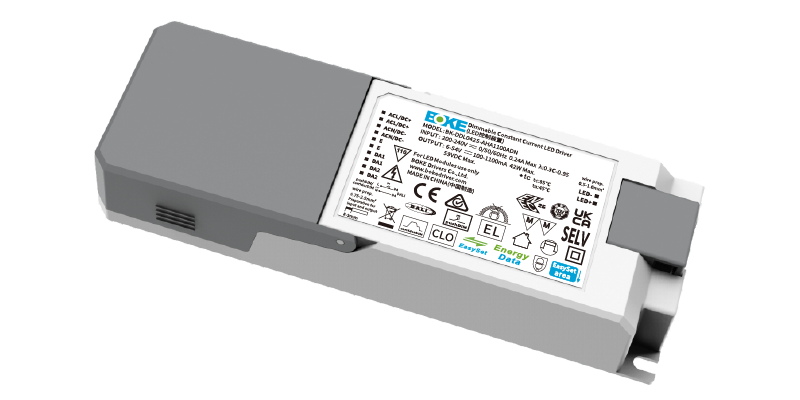

DDL(S)-AHA Series
Constant current independent dimmable driver
Features
·Support DALl-2+pushDlM mode
·Support EnergyData function and energy-reporting reading(DALI Part 252)
·Support Luminaire data reading(DALI Part251),support diagnostics-maintenance reading(DALI Part 253)
·Support advanced functions such as corridorDlM,EL,CLO
·Theoutput current programming can berealized through the DALl interface
·Dual input terminal design, Support loop-in and loop-out wiring without junction box
·Soft dimming and flicker-free at any brightness
·Using HPC patented technology, at any dimming level, the brightness of the lights is the same
·Standby power input<0.5W, meets the requirements of ErP certification
·High PF, high efficiency, low THD
·Screw-free and pressing type strain relief, supports thicker cables and is easier to install
·Independent input and output strain relief, stronger wiring
·Intelligent LED hot-plug protection function
·SELV and Class II design, suitable for use outside or inside of the light
·CompliancewithZhagaBook24/25standards
·Compliance with CCC, CE,ENEC,UKCA,RCM,DALI-2 and other certifications
·IP20 protection grade, indoor use
·Nominal life-time up to 100,000 h
·5.5-year guarantee
Parameters
Model | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-DDL042S-AHA1050ADP | 200-240VAC | 42W | 6-54VDC | 0.3-1.05A | 0.97 | 90.5% | 9% | 45℃ | 85℃ | L172*W57.5*H30 |
BK-DDL042S-AHA1100ADP | 200-240VAC | 42W | 6-54VDC | 0.35-1.1A | 0.97 | 90.5% | 9% | 45℃ | 85℃ | L172*W57.5*H30 |
BK-DDL042S-AHA1100ADN | 200-240VAC | 42W | 6-54VDC | 0.1-1.1A | 0.97 | 90.5% | 9% | 45℃ | 85℃ | L172*W57.5*H30 |
Suffix DP：DALI-2+pushDIM+EnergyData+EL+CLO+corridorDIM+DALI programmable
Suffix DN：DALI-2+pushDIM+EnergyData+EL+CLO+corridorDIM+DALI programmable+NFC programmable
Specifications
Item | Parameter |
Rated input voltage | 200-240VAC |
Limited voltage | 180-264VAC |
Input votage shock | 380V |
Protection type | Class II |
Output type | SELV |
Output current accuracy | ±5% |
Dimming range | 1-100% |
Power on time | <0.7s(AC start),<0.7s(DC start),<0.3s(AC/DC switchover),<0.5s(Turn off ) |
No load output voltage | 59VDC |
Surge | L-N:2KV |
Flicker-free | Pst LM <1,SVM <0.4 |
Operation temperature | -20-45℃ |
Protection class | IP20 |
Life time | Normal 100,000 hours |
Warranty | 5.5 years |

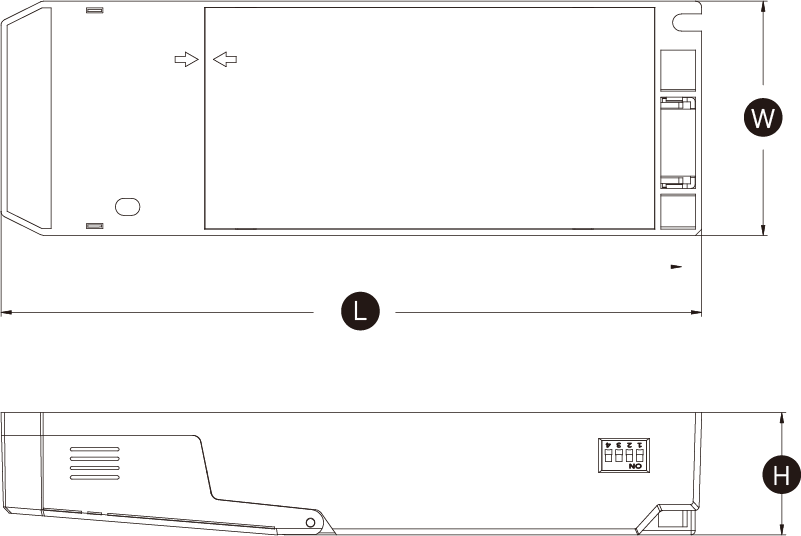

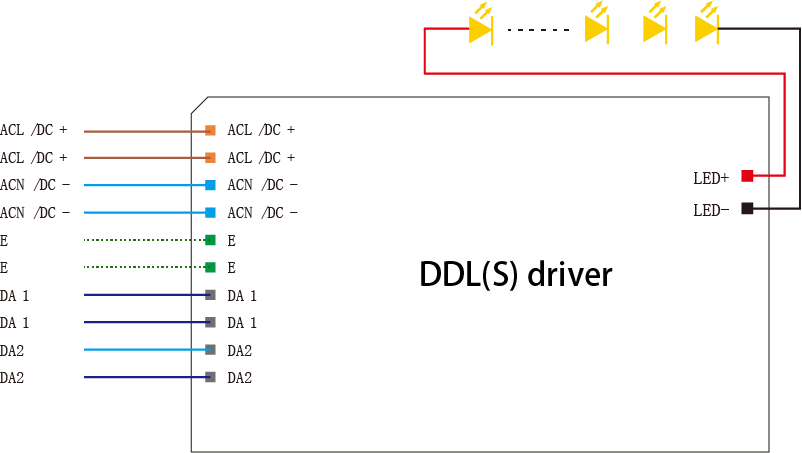

Dimension(unit:mm)
