DBL(S)-A series
Constant current linear driver
Features
·Support DALI-2+pushDIM control
·Support EnergyData function and energy-reporting reading (DALI Part 252)
·Support Luminaire data reading (DALI Part251), support diagnostics-maintenance reading (DALI Part253)
·Support advanced functions such as corridorDIM, EL, CLO
·The output current programming can be realized through the DALI interface
·Multi-level current output can be realized by DIP-switch
·Soft dimming and flicker-free at any brightness, meets the new requirements of ErP certification
·Using HPC patented technology, at any dimming level, the brightness of the luminaries is the same
·High PF, high efficiency, low THD
·Intelligent LED hot-plug protection function
·Output Input terminal Optional press terminal
·SELV and Class I design, suitable for use inside of the luminarie
·Compliance with Zhaga Book 13 standards
·5.5-year guarantee
Parameters
Model | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-DBL040S-A1050ADP | 200-240VAC/DC | 40W | 6-54VDC | 0.15-1.05A | 0.98 | 90% | 10% | 60℃ | 90℃ | L280*W30*H21 |
BK-DBL040S-A1050ADN | 200-240VAC/DC | 40W | 6-54VDC | 0.15-1.05A | 0.98 | 90% | 10% | 60℃ | 90℃ | L280*W30*H21 |
BK-DBL040S-A1050ADPR | 200-240VAC/DC | 40W | 6-54VDC | 0.15-1.05A | 0.98 | 90% | 10% | 60℃ | 90℃ | L280*W30*H21 |
BK-DBL050S-A1300ADP | 200-240VAC/DC | 50W | 6-54VDC | 0.55-1.3A | 0.98 | 90% | 10% | 60℃ | 90℃ | L280*W30*H21 |
BK-DBL050S-A1300ADN | 200-240VAC/DC | 50W | 6-54VDC | 0.2-1.3A | 0.98 | 90% | 10% | 60℃ | 90℃ | L280*W30*H21 |
BK-DBL050S-A1300ADPR | 200-240VAC/DC | 50W | 6-54VDC | 0.55-1.3A | 0.98 | 90% | 10% | 60℃ | 90℃ | L280*W30*H21 |
BK-DBL060S-A1650ADP | 200-240VAC/DC | 62.7W | 6-54VDC | 0.9-1.65A | 0.98 | 91% | 10% | 60℃ | 90℃ | L360*W30*H21 |
BK-DBL060S-A1650ADN | 200-240VAC/DC | 62.7W | 6-54VDC | 0.25-1.65A | 0.98 | 91% | 10% | 60℃ | 90℃ | L360*W30*H21 |
BK-DBL060S-A1650ADPR | 200-240VAC/DC | 62.7W | 6-54VDC | 0.9-1.65A | 0.98 | 91% | 10% | 60℃ | 90℃ | L360*W30*H21 |
BK-DBL080S-A2000ADP | 200-240VAC/DC | 80W | 6-54VDC | 1.25-2A | 0.98 | 91% | 10% | 60℃ | 90℃ | L360*W30*H21 |
BK-DBL080S-A2000ADN | 200-240VAC/DC | 80W | 6-54VDC | 0.3-2A | 0.98 | 91% | 10% | 60℃ | 90℃ | L360*W30*H21 |
BK-DBL080S-A2000ADPR | 200-240VAC/DC | 80W | 6-54VDC | 1.25-2A | 0.98 | 91% | 10% | 60℃ | 90℃ | L360*W30*H21 |
Suffix DP： DALI-2 + pushDIM+EnergyData+EL+CLO +corridorDIM+DALI programmable
Suffix DPR： DALI-2 + pushDIM+EnergyData+EL+CLO +corridorDIM+DALI programmable+External DIP-switch
Suffix DN： DALI-2 + pushDIM+EnergyData+EL+CLO +corridorDIM+DALI programmable+NFC programmable
Specifications
Item | Parameter |
Rated input voltage | 200-240VAC/200-240VDC |
Limited voltage | 180-264VAC/200-264VDC |
Input votage shock | 380V |
Protection type | Class I |
Output type | SELV |
Output current accuracy | ±2% |
Dimming range | 0.1-100% |
Power on time | <0.75s(AC start),<0.75s(DC start),<0.3s(AC/DC switchover),<0.5s(Turn off ) |
No load output voltage | N/A |
Surge | L-N:2KV,L-FG/N-FG:4KV(90°/270°, 5 times each with an interval of 60s) |
Flicker-free | Pst LM <1,SVM <0.4 |
Operation temperature | -25°C-60°C |
Protection class | IP20 |
Life time | Normal 100,000 hours |
Warranty | 5.5 years |

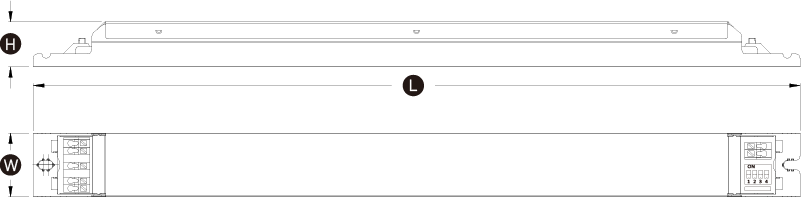

Dimension(unit:mm)

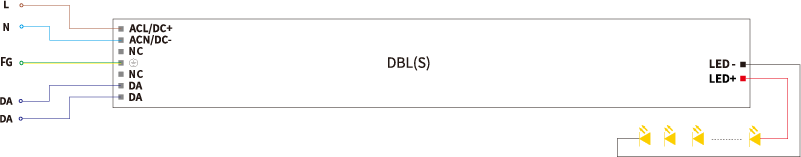

Wiring diagram
