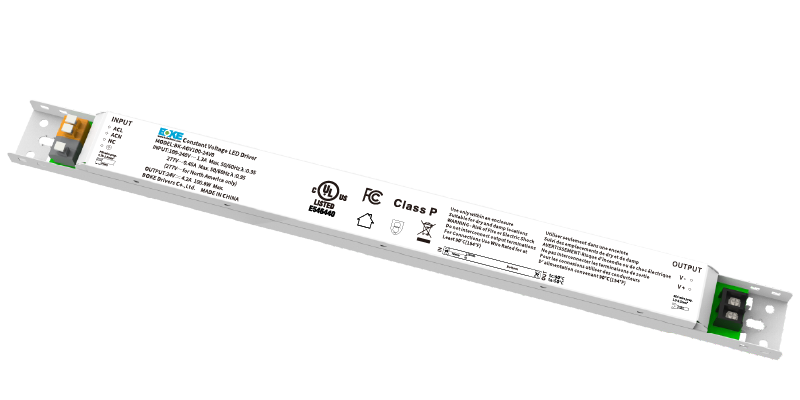

AGV series
Constant voltage linear driver
Features
·Flicker-free output,which meets the requirement of ErP standard
·High PF, high efficiency, low THD
·SELV and Class l design,suitable for use inside of the light
·Compliance with CE, ENEC, UKCA, RCM and other certifications
·lP20 protection grade, indoor use
·Nominal life-time up to 100,000 h
·5.5-yearguarantee
Parameters
Model | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Ta | Dimension(mm) |
BK-AGV040-24V0 | 120-277VAC | 40W | 24V | 1.67A | 0.99 | 88% | 5% | 60℃ | 90℃ | L265*W30*H21 |
BK-AGV040-48V0 | 120-277VAC | 40W | 48V | 0.83A | 0.99 | 88% | 5% | 60℃ | 90℃ | L265*W30*H21 |
BK-AGV100-24V0 | 100-277VAC | 100.8W | 24V | 4.2A | 0.99 | 92% | 5% | 50℃ | 90℃ | L375*W30*H21 |
BK-AGV100-48V0 | 100-277VAC | 100.8W | 48V | 2.1A | 0.99 | 92% | 5% | 50℃ | 90℃ | L375*W30*H21 |
BK-AGV120-24V0 | 100-277VAC | 120W | 24V | 5A | 0.99 | 92% | 5% | 50℃ | 90℃ | L375*W30*H21 |
BK-AGV120-48V0 | 100-277VAC | 120W | 48V | 2.5A | 0.99 | 92% | 5% | 50℃ | 90℃ | L375*W30*H21 |
BK-AGV150-24V0 | 100-277VAC | 150W | 24V | 6.25A | 0.99 | 93% | 6% | 50℃ | 90℃ | L375*W30*H21 |
BK-AGV150-48V0 | 100-277VAC | 150W | 48V | 3.13A | 0.99 | 93% | 6% | 50℃ | 90℃ | L375*W30*H21 |
BK-AGV200-24V0 | 100-277VAC | 200W | 24V | 8.33A | 0.99 | 93% | 5% | 50℃ | 90℃ | L405*W36*H23 |
BK-AGV200-48V0 | 100-277VAC | 200W | 48V | 4.2A | 0.99 | 93% | 5% | 50℃ | 90℃ | L405*W36*H23 |
Specifications
Item | Parameter |
Rated input voltage | 100-277VAC 150-390VDC |
Limited voltage | 90-305VAC 130-400VDC |
Input votage shock | 380V |
Protection type | Class I |
Output type | SELV |
Voltage accuracy | 5% |
Power on time | <0.5s |
Surge | L-N:2KV,L/N-FG:2KV |
Flicker-free | Pst LM <1,SVM <0.4 |
Operation temperature | -25-50℃/60℃ |
Protection class | IP20 |
Life time | Normal 100,000 hours |
Warranty | 5.5 years |
Dimension(unit:mm)
Wiring diagram
