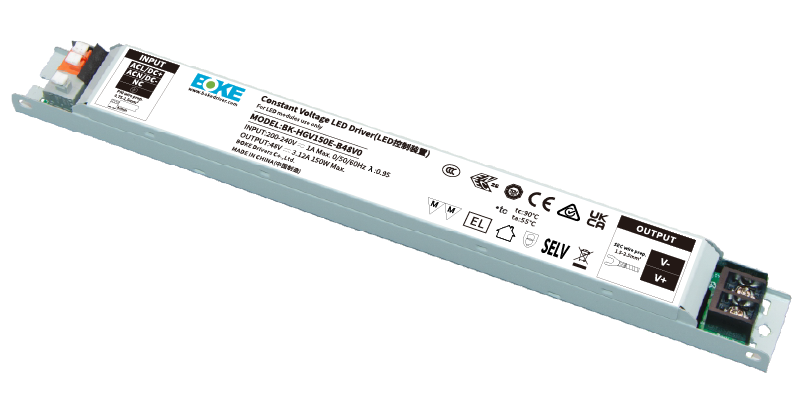

HGV(E)-B series
Constant voltage linear driver
Features
– Flicker-free output,which meets the requirement of ErP standard
– Standby power input<0.5W, meets the requirements of ErP certification
– High PF, high efficiency, low THD
– SELV and Class I design, suitable for use inside of the light
– 5.5-year guarantee
Parameters
Mode | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-HGV100E-24V0 | 200-240VAC/DC | 100W | 24VDC | 4.2A | 0.99 | 93% | 5.5% | 55℃ | 90℃ | L305*W30*H21 |
BK-HGV100E-48V0 | 200-240VAC/DC | 100W | 48VDC | 2.1A | 0.99 | 92% | 7.5% | 55℃ | 90℃ | L285*W30*H21 |
BK-HGV150E-B24V0 | 200-240VAC/DC | 150W | 24VDC | 6.25A | 0.99 | 93% | 4.5% | 55℃ | 90℃ | L305*W30*H21 |
BK-HGV150E-B48V0 | 200-240VAC/DC | 150W | 48VDC | 3.12A | 0.99 | 93% | 4.5% | 55℃ | 90℃ | L285*W30*H21 |
BK-HGV200E-24V0 | 200-240VAC/DC | 199.2W | 24VDC | 8.3A | 0.99 | 93.5% | 4% | 55℃ | 90℃ | L375*W36*H23 |
BK-HGV200E-48V0 | 200-240VAC/DC | 199.2W | 48VDC | 4.15A | 0.99 | 93.5% | 4% | 55℃ | 90℃ | L375*W36*H23 |
Specifications
Item | Parameter |
Rated input voltage | 200-240VAC 200-240VDC |
Limited voltage | 180-264VAC 180-264VDC |
Input votage shock | <380 VAC |
Protection type | Class I |
Output type | SELV |
Output current accuracy: | ±5% |
Power on time | <0.5s(AC start),<0.5s(Turn off ) |
Standby power: | N/A |
No load output voltage: | N/A |
Surge | L-N:2KV,L-FG/N-FG:2KV |
Flicker-free | Pst LM=0.002, SVM=0.016 |
Operation temperature | -25°-45°C |
Protection class | IP20 |
Life time | Normal 100,000 hours |
Warranty | 5.5 years |

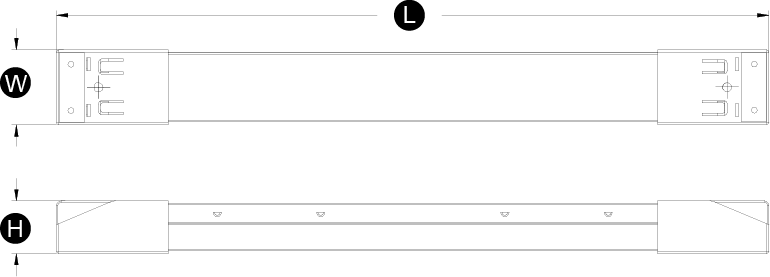

Dimension(unit:mm)
