DGV(S) series
CV linear dimmable driver
·Support DALI-2/pushDIM+1-10V/10V PWM/Rx dimming +12V auxiliary power
·Provide 12V 100mA auxiliary power supply to power control module or sensor
·Support advanced functions such as corridorDIM, EL, CLO
·The output current and related parameters of the driver programming can be realized through the DALI interface
·Soft dimming and flicker-free at any brightness
·Dimming range 0.1~100%,support multiple lights dimming
·Standby power input<0.5W, meets the requirements of ErP certification
·High PF, high efficiency, low THD
·SELV and Class I design, suitable for use inside of the light
·Compliance with CE, ENEC, UKCA, RCM, CCC, DALI-2, EL and other certifications
·IP20 protection grade, indoor use
·Nominal life-time up to 100,000 h
·5.5-year guarantee
Parameters
Model | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-DGV036S-12V0DP | 110-277VAC/200-300VDC | 36W | 12VDC | 3A | 0.99 | 88% | 6.5% | 60℃ | 90℃ | L280*W30*H21 |
BK-DGV060S-12V0DP | 110-277VAC/200-300VDC | 60W | 12VDC | 5A | 0.99 | 87% | 6% | 60℃ | 90℃ | L355*W30*H21 |
BK-DGV120S-12V0DP | 110-277VAC/200-300VDC | 120W | 12VDC | 10A | 0.99 | 91.5% | 4% | 60℃ | 90℃ | L355*W36*H23 |
Suffix DP： DALI-2+pushDIM+1-10V/10V PWM/Rx+12V+EL +CLO+corridorDIM+DALI programmable
Specifications
Item | Parameter |
Rated voltage | 110-277VAC 200-300VDC |
Limited voltage | 100-305VAC 180-315VDC |
Overoltage protection | <380 VAC |
Protection class | Class I |
Output current accuracy | ±5% |
Dimming range | 0.1-100% |
Power on time | <0.7s(AC start),<0.7s(DC start),<0.3s(AC/DC switchover),<0.5s(Turn off ) |
Standby power | <0.5W |
No-load voltage | N/A |
Surge | L-N:2KV,L-FG/N-FG:2KV |
Flicker-free | -20-60℃ |
IP rating | IP20 |
Life time | Normal 100000 hours |
Warranty | 5.5 years |

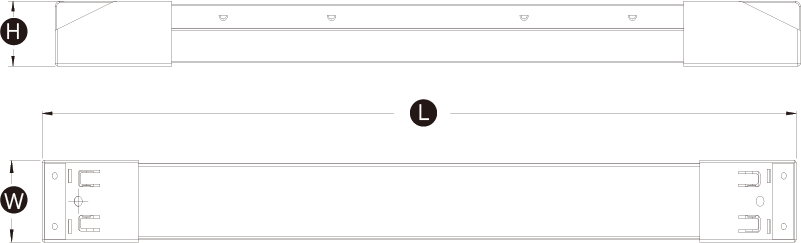

Dimension(unit:mm)

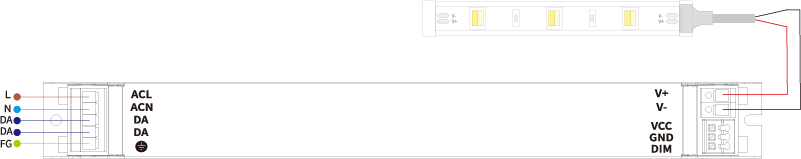

Wiring diagram
