HMV Series
Constant voltage driver
Features
·Flicker-free output,which meets the requirement of ErP standard
·High PF, high efficiency, low THD
·Suitable for working at -20-50°C
·Aluminum metal housing design
·IP67 design for indoor installation.
·Compliance with CE,ENEC,UKCA,RCM,CCC,EL certifications.
·Nominal life-time up to 100,000 h
·5.5-year guarantee
Parameters
Model | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-HMV100-24V0 | 110-277VAC | 100.8W | 24VDC | 4.2A | 0.99 | 94% | 3% | 60℃ | 90℃ | L182*W56*H34 |
BK-HMV100-48V0 | 110-277VAC | 100.8W | 48VDC | 2.1A | 0.99 | 94% | 3% | 60℃ | 90℃ | L182*W56*H34 |
BK-HMV150-24V0 | 110-277VAC | 150W | 24VDC | 6.25A | 0.99 | 93% | 3% | 50℃ | 90℃ | L182*W56*H34 |
BK-HMV150-48V0 | 110-277VAC | 150W | 48VDC | 3.12A | 0.99 | 93% | 3% | 50℃ | 90℃ | L182*W56*H34 |
BK-HMV240-24V0 | 110-277VAC | 240W | 24VDC | 10A | 0.99 | 94% | 3.5% | 50℃ | 90℃ | L214*W68*H38 |
BK-HMV240-48V0 | 110-277VAC | 240W | 48VDC | 5A | 0.99 | 94% | 3.5% | 50℃ | 90℃ | L214*W68*H38 |
BK-HMV320-24V0 | 110-277VAC | 320W | 24VDC | 13.3A | 0.99 | 93% | 4% | 50℃ | 90°C | L217*W89.5*H45.5 |
BK-HMV320-48V0 | 110-277VAC | 320W | 48VDC | 6.65A | 0.99 | 93% | 4% | 50℃ | 90°C | L217*W89.5*H45.5 |
BK-HMV450-24V0 | 110-277VAC | 450W | 24VDC | 18.75A | 0.99 | 93.5% | 4% | 50℃ | 90°C | L252*W89.5*H45.5 |
BK-HMV450-48V0 | 110-277VAC | 450W | 48VDC | 9.4A | 0.99 | 93.5% | 4% | 50℃ | 90°C | L252*W89.5*H45.5 |
Specifications
Item | Parameter |
Rated input voltage | 120-277VAC/170-390VDC |
Limited voltage | 108-305VAC/150-430VDC |
Input votage shock | 380V |
Output type | SELV |
Output current accuracy | 3% |
Surge | L-N:4KV,L-FG/N-FG:6KV |
Flicker-free | Pst LM <1,SVM <0.4 |
Operation temperature | -20°C-50°C |
Protection class | IP67 |
Life time | Normal 100,000 hours |
Warranty | 5.5 years |

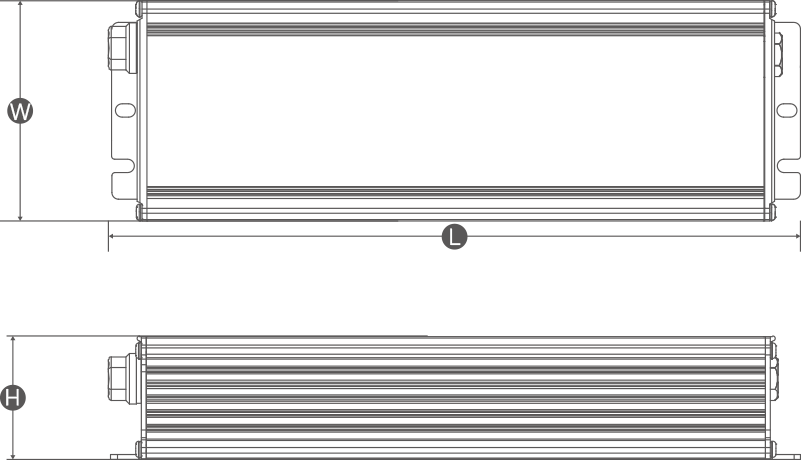

Dimension(unit:mm)

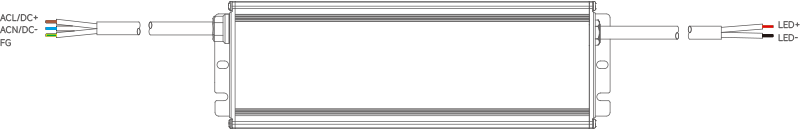

Wiring diagram
