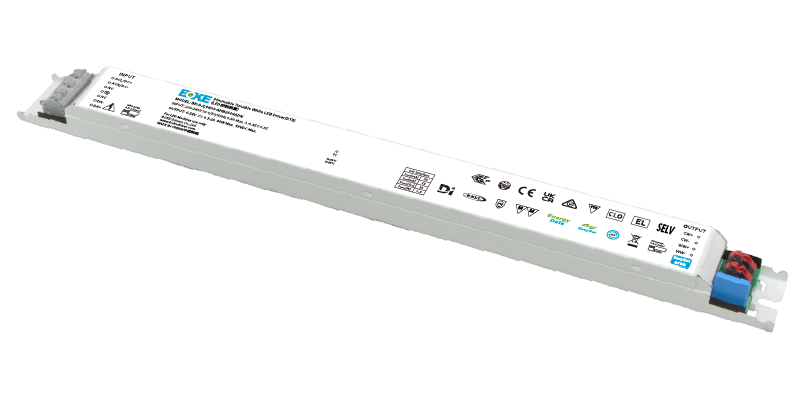

DJL(S)-AHB series
Constant current linear tunable white driver
Features
·Support DALI-2 DT8+D4i control
·Support EnergyData function and energy-reporting reading (DALI Part 252)
·Support Luminaire data reading (DALI Part251), support diagnosticsmaintenance reading (DALI Part253)
·Support advanced functions such as EL, CLO
·The output current programming can be realized through the DALI interface and the NFC interface
·Quickly install the sensor and the wireless control module through theD4iinterface
·Support batch programming of one inner box
·Soft dimming and flicker-free at any brightness, meets the new requirements of ErP certification
·Using HPC patented technology, at any dimming level, the brightness of the luminaries is the same
·High PF, high efficiency, low THD
·Intelligent LED hot-plug protection function
·SELV and Class I design, suitable for use inside of the light
·Compliance with Zhaga Book 13/24/25 standards
·Compliance with CE, ENEC, UKCA, RCM, CCC, DALI-2, D4I, EL and other certifications
·IP20 protection grade, indoor use
·Nominal life-time up to 100,000 h
·5.5-year guarantee
Parameters
Model | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-DJL040S-AHB1050ADN | 200-240VAC/DC | 40W | 6-54VDC | 0.15-1.05A | 0.98 | 90% | 10% | 60℃ | 85℃ | L280*W30*H21 |
BK-DJL080S-AHB2000ADN | 200-240VAC/DC | 80W | 6-54VDC | 0.3-2A | 0.98 | 91% | 10% | 60℃ | 85℃ | L360*W30*H21 |
Suffix DN：DALI-2 DT8+D4i+EnergyData+EL+CLO+DALI programmable+NFC programmable)
Specifications
Item | Parameter |
Rated input voltage | 200-240VAC 200-240VDC |
Limited voltage | 180-264VAC 180-264VDC |
Input votage shock | 380V |
Protection type | Class | |
Output type | SELV |
Voltage accuracy | ±2% |
Dimming range | 0.1-100% |
Power on time | <0.75s |
Surge | L-N:2KV,L-FG/N-FG:4KV(Performance criterion:B) |
Flicker-free | Pst LM <1,SVM <0.4 |
Operation temperature | -25-60℃ |
Protection class | IP20 |
Life time | Normal 100,000 hours |
Warranty | 5.5years |

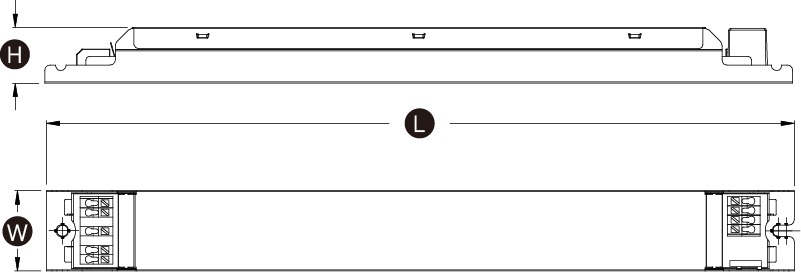

Dimension(unit:mm)

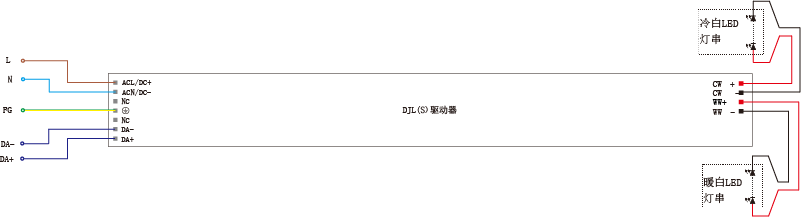

Wiring diagram
