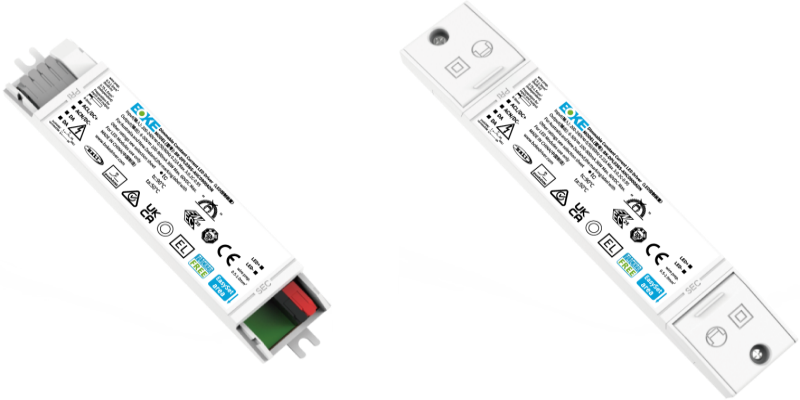

DPL(S) series
CC Independent dimmable driver(DT6)
Features
·Support DALl-2+pushDlM mode
·16 -level current outputcan be realized by DlP-switch
·Support EnergyData function andenergy-reportingreading(DALPart252)
·Support Luminaire data reading(DALlPart251),support diagnostics-maintenance reading(DALlPart253)
·Support advanced functions such as corridorDlM,EL,CLO
·The output current programmingcan be realized through the DALl interface
·Soft dimmingandflicker-free at any brightness
·Using HPc patented technology, at any dimming level, thebrightness of the lightsisthesame
Standby power input<0.5W,meets there quire ments of ErP certification
·High PF, high efficiency, low THD
·Intelligent LED hot-plug protection function
·SELV and Class ll design,suitable for use outside orinside of the light
·Compliance with CE,ENEC,UKCA,RCM,DALI-2,EL and other certifications
·IP20 protection grade,indoor use
·Nominal life-timeup to 100,000 h
·5-year guarantee
Parameters
Model | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-DPL036S-AHC1050ADN | 200-240VAC/DC | 36W | 6-50VDC | 0.1-0.9A | 0.98 | 90% | 10% | 50℃ | 90℃ | L145.5*W30*H21.4(Built-in) |
BK-DPL036S-AHC1050ADP | 200-240VAC/DC | 36W | 6-50VDC | 0.15-0.9A | 0.98 | 90% | 10% | 50℃ | 90℃ | L145.5*W30*H21.4(Built-in) |
Specifications
Item | Parameter |
Rated input voltage | 200-240VAC/VDC |
Limited voltage | 180-264VAC/VDC |
Input votage shock | 380V |
Protection type | Class || |
Output type | SELV |
Voltage accuracy | 5% |
Dimming range | 0.1-100% |
Power on time | <0.7s |
Surge | |
Flicker-free | Pst LM = 0.072, SVM = 0.011 |
Operation temperature | -20-50℃ |
Protection class | IP20 |
Life time | Normal 100,000 hours |
Warranty | 5 years |
Dimension(unit:mm)
Wiring diagram
