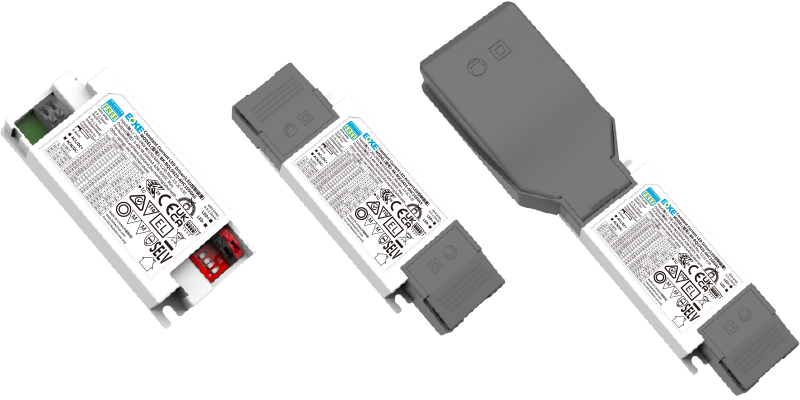

BQL(S)-AHC series
CC Independent on/off driver
Features
·16-level current output can berealized by DlP-switch
·Flicker-free output,which meets the requirement of ErP standard
·With stand 380VAC high voltage short-time shock
·Mains surge capability up to 2 KV
·Screw-free design,easy wiring
·Optional Junction box:support up to 2.5mm² cable and loop-through function
·High PF,high efficiency,low THD
·Pushable strain relief design,easy to crimp and install
·SELV and Class II design,suitable for use outside of the light
·Passed CE,ENEC,UKCA,RCM,CCC,EL and other certifications
·Nominal life-timeup to 100,000 h
·5.5-year guarantee
Parameters
Model | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-BQL042S-AHC1050AS | 200-240VAC/DC | 42W | 3-49VDC | 0.3-1.05A | 0.97 | 91.5% | 9% | 45/50/60°C | 85℃ | L97*W44*H23(Built-in) L137*W44*H23(Independent) |
BK-BQL042S-AHC1050BN | 200-240VAC/DC | 42W | 6-54VDC | 0.1-1.05A | 0.97 | 91.5% | 9% | 45/50/60°C | 85℃ | L97*W44*H23(Built-in) L137*W44*H23(Independent) |
Specifications
Item | Parameter |
Rated input voltage | 200-240VAC/200-240VDC |
Limited voltage | 180-264VAC/200-264VDC |
Input votage shock | 380V |
Protection type | Class || |
Output type | SELV |
Output current accuracy | 5% |
Power on time | <0.5s |
No load output voltage | 60VDC |
Surge | L-N:2KV |
Flicker-free | Pst LM <1,SVM <0.4 |
Operation temperature | 45/50/60℃-85℃ |
Protection class | IP20 |
Life time | Normal 100,000 hours |
Warranty | 5.5 years |
Dimension(unit:mm)
Wiring diagram
