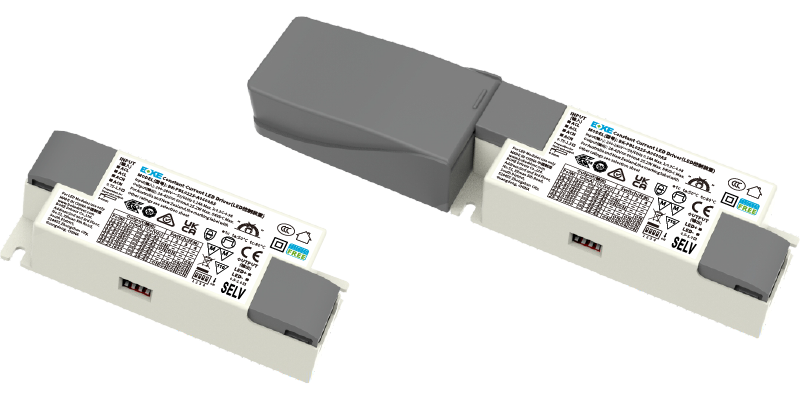

PBL(S)-A series
Constant current independent driver
Features
– Multi-level current output can be realized by DIP-switch
– Flicker-free output,which meets the requirement of ErP standard
– Two-stage and isolation,more stable and safer
– Dual input terminal design, Support loop-in and loop-out wiring without junction box
– Optional Junction Box: Support up to 2.5mm² Cable and Loop-through Function
– Withstand 380VAC high voltage short-time shock
– Mains surge capability up to 2KV
– Screw-free design,easy wiring
– High PF,high efficiency, low THD
– Pushable strain relief design,easy to crimp and install
– Compact housing design
– SELV and Class II design,suitable for use outside of the light
– 5.5-year guarantee
Parameters
Model | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-PBL022S-A0300AS | 200-240VAC | 12.6W | 28-42V | 0.1-0.3A | 0.99 | 93% | 8% | 50℃ | 80℃ | L123*W46*H30mm |
BK-PBL022S-A0600AS | 200-240VAC | 25.2W | 28-42V | 0.3-0.6A | 0.98 | 92% | 7% | 50℃ | 80℃ | L123*W46*H30mm |
BK-PBL022S-A0600ASC | 200-240VAC | 25.2W | 28-42V | 0.3-0.6A | 0.98 | 93% | 6% | 50℃ | 80℃ | L122*W50*H30mm |
BK-PBL022S-A0600ASEC | 200-240VAC | 25.2W | 28-42V | 0.3-0.6A | 0.98 | 93% | 6% | 50℃ | 80℃ | L122*W50*H30mm |
BK-PBL040S-A1100AS | 200-240VAC | 41.8W | 28-42V | 0.5-1A | 0.98 | 93.5% | 8% | 45℃ | 80℃ | L123*W46*H30mm |
BK-PBL040S-A0900BS | 200-240VAC | 41.6W | 28-42V | 0.4-0.9A | 0.97 | 93% | 8% | 45℃ | 80℃ | L123*W46*H30mm |
BK-PBL022S-A0600ASC | 200-240VAC | 42W | 28-42V | 0.5-1.1A | 0.97 | 93% | 8% | 45℃ | 80℃ | L122*W50*H30mm |
BK-PBL022S-A0600ASEC | 200-240VAC | 42W | 28-42V | 0.5-1.1A | 0.97 | 93% | 8% | 45℃ | 80℃ | L122*W50*H30mm |
BK-PBL060S-A1650AS | 200-240VAC | 63W | 36-54V | 0.9-1.65A | 0.98 | 94% | 7% | 45℃ | 80℃ | L142*W50*H30mm |
BK-PBL060S-A1650ASC | 200-240VAC | 63W | 28-42V | 0.9-1.65A | 0.98 | 94% | 7% | 45℃ | 80℃ | L142*W50*H30mm |
BK-PBL060S-A1650ASEC | 200-240VAC | 63W | 28-42V | 0.9-1.65A | 0.98 | 94% | 7% | 45℃ | 80℃ | L142*W50*H30mm |
Specifications
Item | Parameter |
Rated input voltage | 200-240VAC 200-240VDC |
Limited voltage | 180-264VAC/200-264VDC |
Input votage shock | 380V |
Protection type | Class || |
Output type | SELV |
No load output voltage | 54VDC |
Output current accuracy | 5% |
Standby power | <0.5W |
Surge | L-N:2KV |
Flicker-free | Pst LM <1,SVM <0.4 |
Operation temperature | -20-50℃ |
Protection class | IP20 |
Life time | Normal 100,000 hours |
Warranty | 5.5 years |

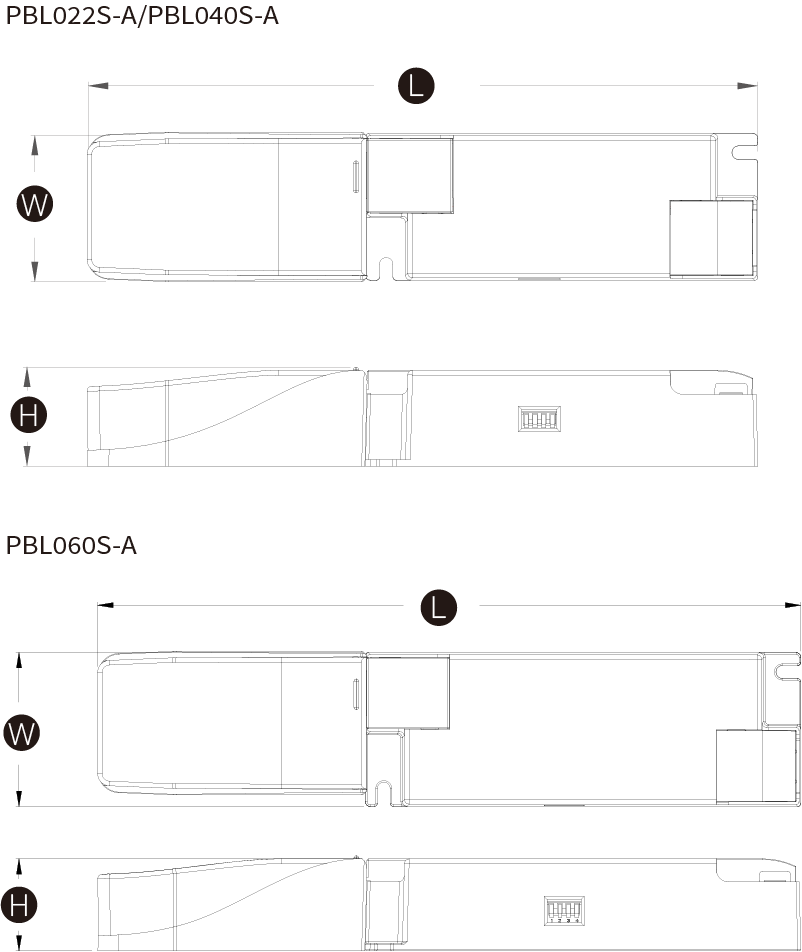

Dimension(unit:mm)
