BPL(S)-AHC series
Constant current independent driver
·The output current programming can be realized through the NFC interface
·Flicker-free output,which meets the requirement of ErP standard
·Withstand 380VAC high voltage short-time shock
·Mains surge capability up to 2KV
·High PF, high efficiency, low THD
·Compact housing design
·SELV and Class II design, suitable for use outside or inside of the light
·Compliance with Zhaga Book 24/25 standards
·Compliance with CE,ENEC,UKCA,RCM,CCC,EL and other certifications
·IP20 protection grade, indoor use
·Nominal life-time up to 100,000 h
·5.5-year guarantee
Parameters
Model | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-BPL036S-AHC0900AN | 200-240VAC/DC | 36W | 6-50VDC | 0.1-0.9A | 0.98 | 92% | 10% | 50℃ | 90℃ | L145.5*W30*H21.4(Built-in) L163.5*W30*H21.4(Independent) |
BK-BPL040S-AHC1050AS | 200-240VAC/DC | 40W | 3-49VDC | 0.3-1.05A | 0.98 | 91% | 8% | 60℃ | 90℃ | L145.5*W30*H21.4mm(Built-in) L163.5*W30*H21.4mm(Independent) |
Suffix S：
Suffix N： NFC programmable
Specifications
Item | Parameter |
Rated voltage | 200-240VAC 200-240VDC |
Limited voltage | 180-264VAC 180-264VDC |
Overoltage protection | <380 VAC |
Protection class | Class II |
Output current accuracy | ±5% |
Dimming range | N/A |
Power on time | Pst LM <1,SVM <0.4 |
Standby power | N/A |
No-load voltage | N/A |
Surge | L-N:2KV |
Flicker-free | -25-50℃ |
IP rating | IP20 |
Life time | Normal 100000 hours |
Warranty | 5.5 years |

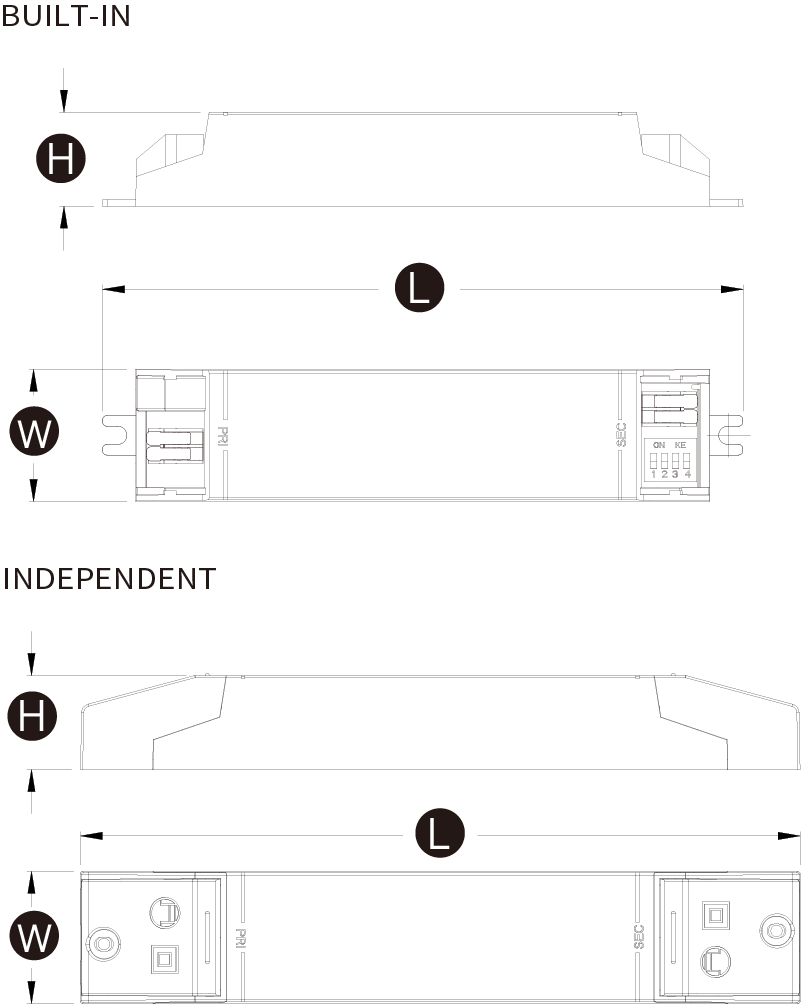

Dimension(unit:mm)
