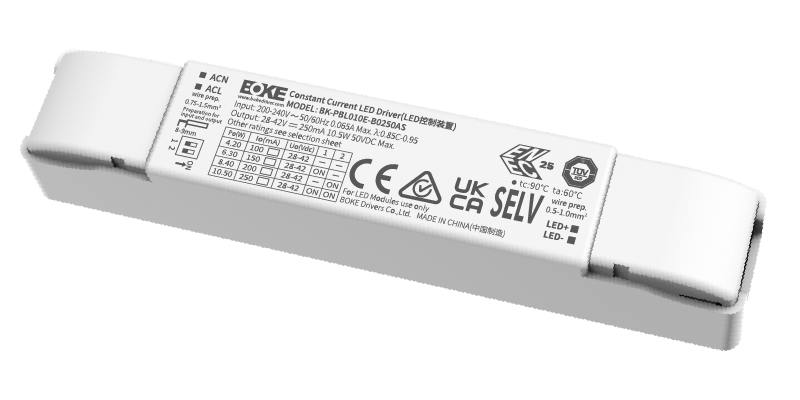

PBL(E)-B series
Constant current independent driver
Features
·Slim shape design, can beinstalled through a30mm mountinghole
·Multi-level currentoutputcan be realized by DlP-switch
·Flicker-freeoutput,which meets therequirement of ErP standard
·Two-stage and isolation,more stable and safer
·High PF, low THD
·Screw-free design,easy wiring
·Screw-free and pressing type strain reliefand easier to instal!
·SELV and Class ll design, suitable foruse outside ofthe light
·5.5-year guarantee
Model | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-PBL010E-B0250AS | 200-240VAC | 10.5W | 28-42VDC | 0.1-0.25A | 0.97 | 85% | 6% | 60℃ | 90℃ | L123*W23*H20 |
BK-PBL010E-B0350BS | 200-240VAC | 7.7W | 15-22VDC | 0.2-0.35A | 0.96 | 83% | 7% | 60℃ | 90℃ | L123*W23*H20 |
BK-PBL010E-B0250ASE | 200-240VAC | 10.5W | 28-42VDC | 0.1-0.25A | 0.97 | 85% | 6% | 60℃ | 90℃ | L123*W23*H20 |
BK-PBL013E-B0350AS | 200-240VAC | 13.3W | 28-42VDC | 0.2-0.35A | 0.97 | 86% | 6% | 60℃ | 90℃ | L123*W23*H20 |
BK-PBL013E-B0500BS | 200-240VAC | 11W | 15-22VDC | 0.35-0.5A | 0.97 | 84.5% | 5% | 60℃ | 90℃ | L123*W23*H20 |
BK-PBL013E-B0350ASE | 200-240VAC | 13.3W | 28-42VDC | 0.2-0.35A | 0.97 | 86% | 6% | 60℃ | 90℃ | L123*W23*H20 |
BK-PBL022E-B0600AS | 200-240VAC | 22.8W | 28-42VDC | 0.3-0.6A | 0.98 | 88.5% | 5% | 50℃ | 90℃ | L129*W29.5*H20 |
Specifications
Item | Parameter |
Rated voltage | 200-240VAC |
Limited voltage | 180-264VAC |
Overoltage protection | <380 VAC |
Protection class | Class II |
Output current accuracy | ±5% |
Dimming range | N/A |
Power on time | <0.7s(AC start) |
Standby power | N/A |
No-load voltage | N/A |
Surge | L-N:2KV |
Flicker-free | -25-60℃ |
IP rating | IP20 |
Life time | Normal 100000 hours |
Warranty | 5.5 years |

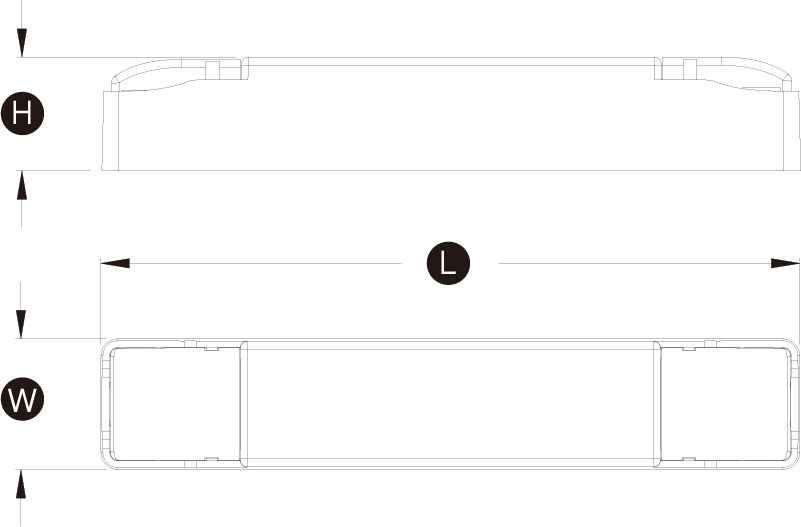

Dimension(unit:mm)
