Constant current independent dimmable driver(DALI-2+pushDIM)

DKL-A Series

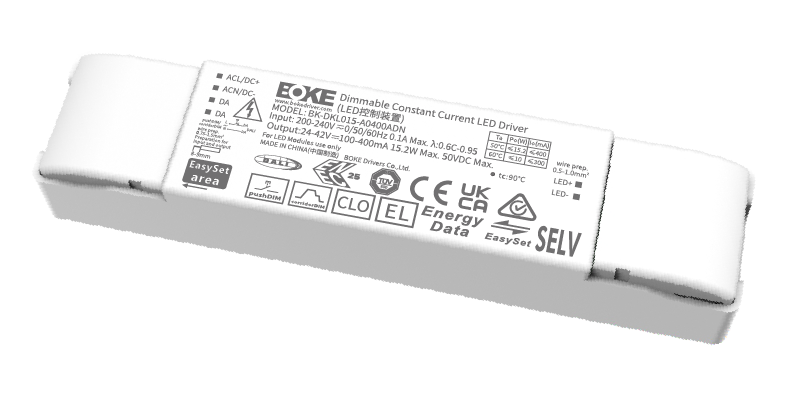

CC independent dimmable driver

Features
·Support DALI-2+pushDIM dimming mode
·Multi-level current output can be realized by DIP-switch
·Soft dimming and flicker-free at any brightness
·Using HPC patented technology, at any dimming level, the brightness of the lights is the same
·Standby power input<0.5W, meets the requirements of ErP certification
·High PF, high efficiency, low THD
·Screw-free and pressing type strain relief, supports thicker cables
and is easier to install
·Independent input and output strain relief, stronger wiring
·Intelligent LED hot-plug protection function
·SELV and Class II design, suitable for use outside of the light
·5.5-year guarantee

Parameters

Model	Input voltage	Output power	Output voltage	Output current	PF	Efficiency	THD	Ta	Tc	Dimension(mm)
BK-DKL010-A0250AD BK-DKL010-A0250ADP	200-240VAC/DC	10.5W	24-42VDC	0.1-0.25A	0.93	82.5	11%	60℃	90℃	L129W29.5H20
BK-DKL015-A0400AD BK-DKL015-A0400ADP	200-240VAC/DC	15.2W	24-42VDC	0.25-0.4A	0.96	85%	9.5%	60℃	90℃	L129W29.5H20
BK-DKL015-A0400ADN	200-240VAC/DC	15.2W	24-42VDC	0.1-0.4A	0.96	85%	9.5%	60℃	90℃	L129W29.5H20
BK-DKL022-A0600AD BK-DKL022-A0600ADP BK-DKL022-A0600ADN	200-240VAC/DC	22.8W	24-42VDC	0.225-0.6A	0.96c	86%	15%	45℃	90℃	L117W45.5H29
BK-DKL040-A1050AD BK-DKL040-A1050ADP BK-DKL040-A1050ADN	200-240VAC/DC	40W	24-42VDC	0.6-1.05A	0.96	89%	12.5%	45℃	90℃	L137W46H30
BK-DKL060-A1650AD BK-DKL060-A1650ADP BK-DKL060-A1650ADN	200-240VAC/DC	62.7W	24-42VDC	1.1-1.65A	0.97	89%	12.5%	45℃	90℃	L157.5W50.5H30

Suffix D： DALI-2+pushDIM

Suffix DP： DALI-2+pushDIM+EnergyData+EL+CLO+corridorDIM +DALI programmable

Suffix DN： DALI-2+pushDIM+EnergyData+EL+CLO+corridorDIM +DALI programmable+NFC programmable

Specifications

Item	Parameter
Rated input voltage	200-240VAC/200-240VDC
Limited voltage	180-264VAC/180-264VDC
Input votage shock	380V
Protection type	Class II
Output type	SELV
Output current accuracy	5%
Dimming range	1-100%
Power on time	<0.7s(AC start),<0.7s(DC start),<0.3s(AC/DC switchover),<0.5s(Turn off )
Standby power	<0.5W
No load output voltage	50VDC
Surge	L-N:2KV
Flicker-free	Pst LM <1,SVM <0.4
Operation temperature	-20°C-50/60°C
Protection class	IP20
Life time	Normal 100,000 hours
Warranty	5.5 years

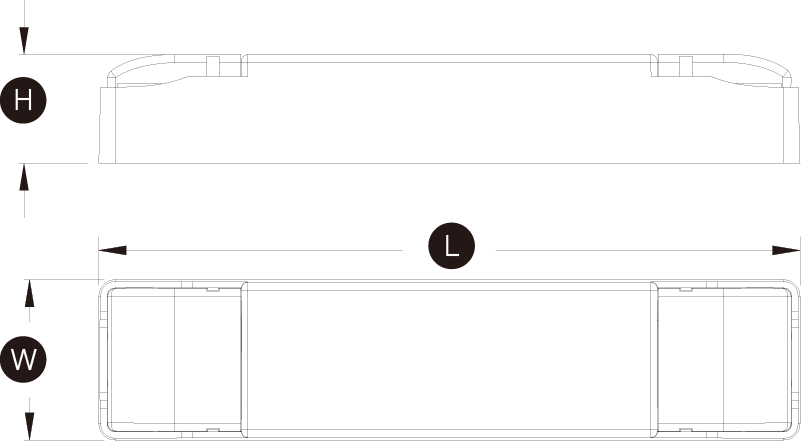

Dimension(unit:mm)

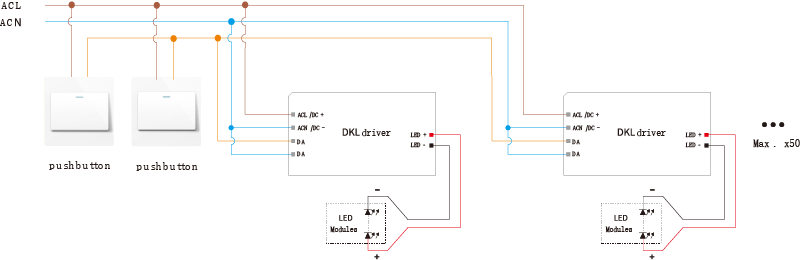

Wiring diagram

Suffix D：DALI-2+pushDIM
