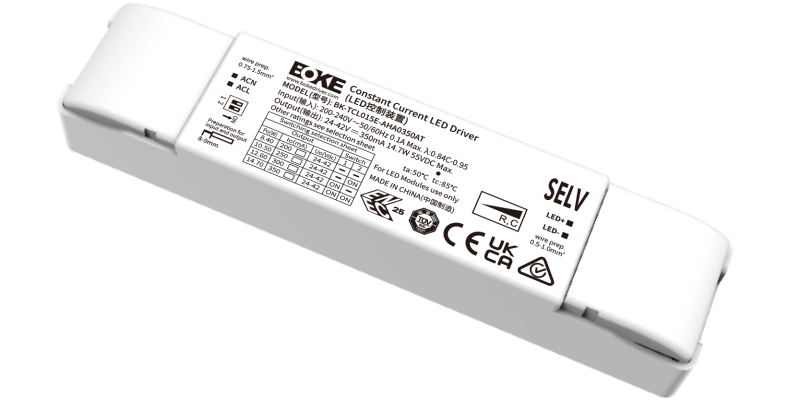

TCL(E)-AHA series
CC Independent dimmable driver
Features
·Support Triac dimming mode
·Slim shape design,canbeinstalled through a 35mm mounting hole
·Soft dimming and flicker-free at any brightness
·Screw-free and pressing type strain relief and easier to install
·SELV and Class ll design, suitable foruse outside of the light
·Compliance with CE,ENEC,UKCA,RCM and other certifications
·1P20 protection grade, indoor use
·Nominal life-time up to 100,000 h
·5.5-year guarantee
Parameters
Model | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-TCL010E-AHA0250AT | 200-240VAC/DC | 10.5W | 24-42VDC | 0.2-0.35A | 0.95 | 82% | 20% | 50℃ | 85℃ | L123*W23*H20 |
BK-TCL015E-AHA0350AT | 200-240VAC/DC | 14.7W | 24-42VDC | 0.2-0.35A | 0.95 | 84% | 20% | 50℃ | 85℃ | L129*W29.5*H20 |
BK-TCL020E-AHA0500AT | 200-240VAC/DC | 20W | 24-42VDC | 0.35-0.5A | 0.96 | 85% | 20% | 50℃ | 85℃ | L129*W29.5*H20 |
BK-TCL030E-AHA0750AT | 200-240VAC/DC | 30W | 24-42VDC | 0.4-0.75A | 0.97 | 88% | 20% | 50℃ | 85℃ | L97.5*W44*H23.4mm(Built-in) L137.5*W44*H23.4mm(Independent) |
BK-TCL040E-AHA1050AT | 200-240VAC/DC | 40W | 24-42VDC | 0.7-1.05A | 0.97 | 90% | 20% | 50℃ | 85℃ | L97.5*W44*H29mm(Built-in) L137.5*W44*H29mm(Independent) |
T：Triac
Specifications
Item | Parameter |
Rated input voltage | 200-240VAC/200-240VDC |
Limited voltage | 198-264VAC |
Input votage shock | 380V |
Protection type | Class || |
Output type | SELV |
Voltage accuracy | ±5% |
Dimming range | 5-100% |
Power on time | <0.5s |
Surge | L-N:1KV |
Flicker-free | Pst LM = 0.001, SVM = 0.004 |
Operation temperature | -20-50℃ |
Protection class | IP20 |
Life time | Normal 100,000 hours |
Warranty | 5.5 years |
Dimension(unit:mm)

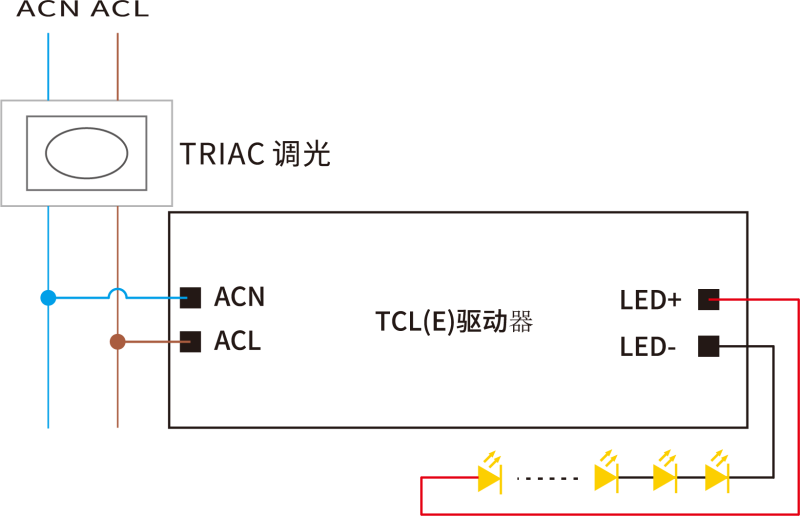

Wiring diagram
T：Triac
