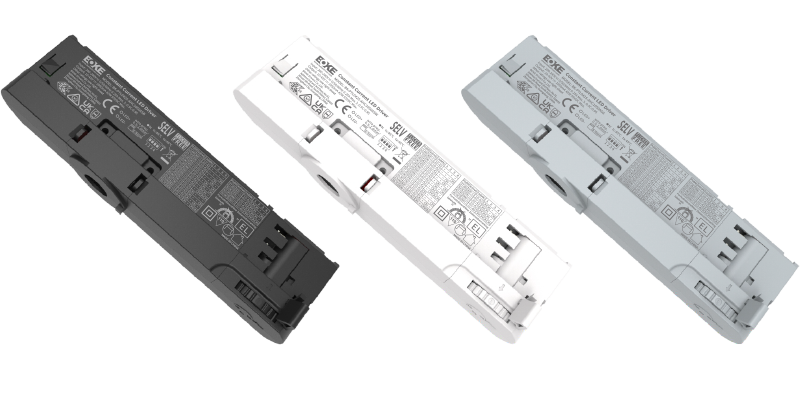

PTL(S)-AHC series

CC AC in-track driver(four-wire ON/OFF)

  Features ·Efficiency up to 91.5%, THD as low as 8% ·12/16-level current output can be realized by DlP-switch ·Compatible 3-phase track system with mainstream brands and models ·Black, white or gray housing are optional ·Optional accessory M10*8 or M10*12 for mounting the luminaire head ·Flicker-free output,which meets the requirement of ErP standard ·SELV and Class ll design, suitable for AC integrated track ·Compliance with CE, ENEC, UKCA, RCM, CCC,EL and other certifications ·lP20 protection grade,indoor use ·Nominallife-time up to 100,000 h ·5.5-year guarantee

Parameters

Mode

Input voltage

Output power

Output voltage

Output current

PF

Efficiency

THD

Ta

Tc

Dimension(mm)

BK-PTL030S-AHC0700ASW

BK-PTL030S-AHC0700ASB

BK-PTL030S-AHC0700ASG

200-240VAC

29.4W

10-42V

0.15-0.7A

0.97

91.5%

11%

40℃

75℃

L158*W42*H31

BK-PTL042S-AHC1050ASW

BK-PTL042S-AHC1050ASB

BK-PTL042S-AHC1050ASG

200-240VAC

42W

10-42V

0.3-1.05A

0.98

91.5%

8%

40℃

85℃

L158*W42*H31

suffix SW:white

suffix SB:black

suffix SG:grey

Specifications

Item

Parameter

Rated input voltage

200-240VAC/200-240VDC

Limited voltage

180-264VAC/200-264VDC

Input votage shock

380V

Protection type

Class ||

Output type

SELV

Output current accuracy:

5%

Power on time

<0.5s

Standby power:

<0.5W

No load output voltage:

55VDC

Surge

L-N:2KV

Flicker-free

Pst LM <1,SVM <0.4

Operation temperature

-20°C-45°C

Protection class

IP20

Life time

Normal 100,000 hours

Warranty

5.5 years

Dimension(unit:mm)

Wiring diagram

Datasheet-CC on off driver-BK-PTL(S) Series suffix SW SB SG V1.2 EN
