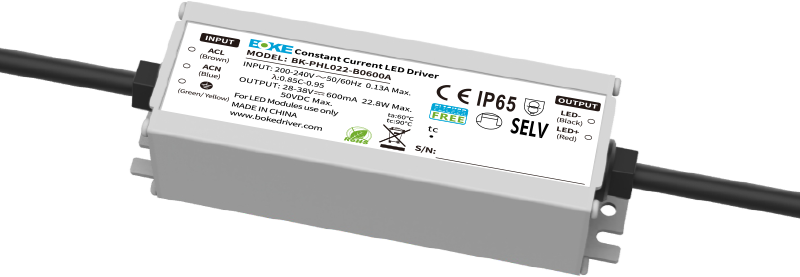

PHL-B series
CC waterproof driver
Features
·Output flick-free, meets the new requirements of ErP certification
·IP65 design for in door installation.
·High PF, high efficien cy, low THD
·Withstand 380VAC high voltage short-time shock
·Startup time <0.5s
·Aluminum metal housing design
·SELV and Class I design, suitable for use inside of the light
·Compliance with CE,ENEC,UKCA,RCM,CCC certifications.
·Nominal life-time up to 100,000 h
·5-year guarantee
Parameters
Model | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-PHL022-BxxxxA | 200-240VAC | 22.8W | 28-42V | 0.25-0.6A | 0.98 | 87.5% | 6.5% | 60℃ | 90℃ | L107*W43.5*H34 |
BK-PHL040-BxxxxA | 200-240VAC | 42W | 28-42V | 0.55-1.1A | 0.99 | 90% | 5% | 60℃ | 90℃ | L122*W43.5*H34 |
BK-PHL060-BxxxxA | 200-240VAC | 62.7W | 28-42V | 0.05-1.65A | 0.97 | 90.5% | 7.5% | 60℃ | 90℃ | L133*W56*H34 |
Suffix DP：DALI-2+CLO+DALI programmable
Specifications
Item | Parameter |
Rated input voltage | 200-240VAC/200-240VDC |
Limited voltage | 180-264VAC/200-264VDC |
Input votage shock | 380V |
Output type | SELV |
Output current accuracy | 2% |
Dimming range | 1-100% |
Power on time | <0.5s |
Standby power | <0.5W |
No load output voltage | <50v |
Surge | L-N:2KV |
Flicker-free | Pst LM <1,SVM <0.4 |
Operation temperature | -20°C-60°C |
Protection class | IP65 |
Life time | Normal 100,000 hours |
Warranty | 5 years |
Dimension(unit:mm)
Wiring diagram
