MAN Series

CC Linear dimmable driver



Features
·Input and output non-isolated
·Support 1-10V/10V PWM/Rx dimming
·Suitable for emergency lighting acc.to EN 50172
·Soft dimming and flicker-free at any brightness
·10-level current output can be realized by DlP-switch
·Using HPC patented technology at any dimming level, the brightness of the lights is the same
·Dimming range 1~100%,output current accuracy 5%
·High PF, high efficiency, low THD
·Suitable for built-in use of Class l lamps
·Compliance with CE, ENEC, UKCA, RCM,EL and other certifications
·IP20 protection grade, indoor use
·Nominal life-time up to 100,000 h
·5-year guarantee

Parameters

Model

Input voltage

Output power

Output voltage

Output current

PF

Efficiency

THD

Ta

Tc

Dimension(mm)

BK-MAN040-A0400AM

200-240VAC

40W

50-240V

0.1-0.4A

0.97

92%

9%

60℃

85℃

L280*W30*H21

BK-MAN075-A0550AM

200-240VAC

75.35W

50-240V

0.1-0.55A

0.99

94.5%

5%

60℃

90℃

L280*W30*H21

BK-MAN100-A0800AM

200-240VAC

100W

50-240V

0.35-0.8A

0.99

95.5%

5%

60℃

90℃

L280*W30*H21

BK-MAN150-A1000AM

200-240VAC

150W

50-240V

0.35-1A

0.99

95.5%

5%

60℃

90℃

L360*W30*H21

Suffix M=1-10V/10V PWM/Rx dimming

Specifications

Item

Parameter

Rated input voltage

200-240VAC/200-240VDC

Limited voltage

180-264VAC/200-264VDC

Input votage shock

380V

Protection type

Class |

Output type

SELV

Output current accuracy

5%

Dimming range

1-100%

No load output voltage

300V

Power on time

<0.5s

Surge

L-N:2KV,L-FG/N-FG:2KV

Flicker-free

Pst LM <1,SVM <0.4

Operation temperature

-20°C-60°C

Protection class

IP20

Life time

Normal 100,000 hours

Warranty

5 years

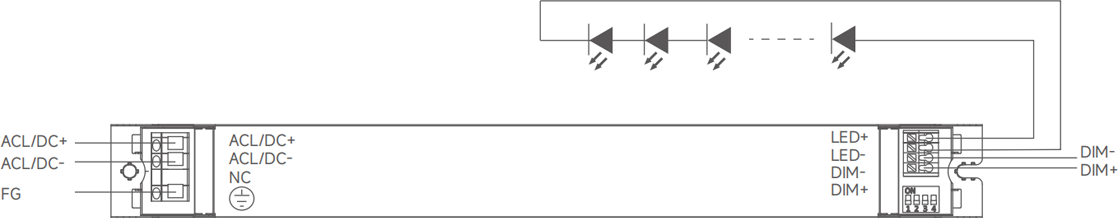

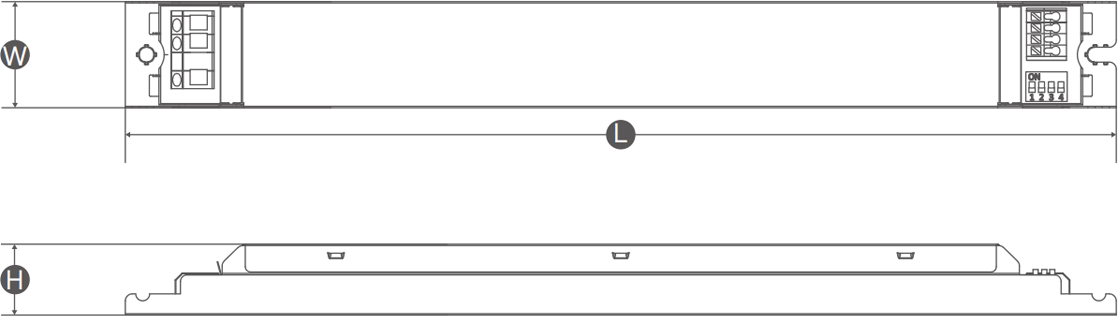

Dimension(unit:mm)

Dimension(unit:mm)

Datasheet-CC dimmable driver-BK-MAN040-A 075-A 100-A 150-Asuffix M V1.0 EN
