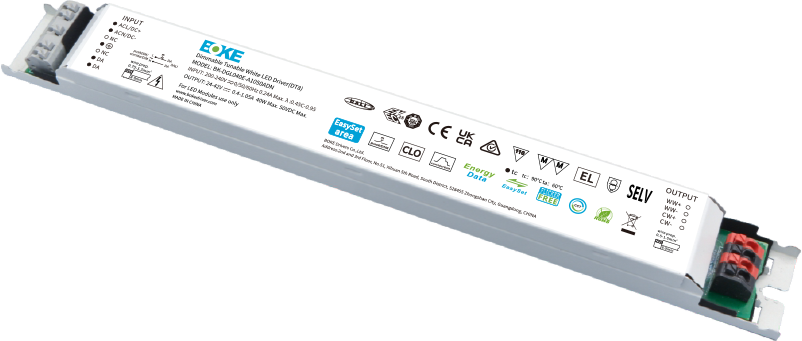

DGL(E)-A Series
CC Linear dimmable driver(DT8)
Features
·Support DALI-2+pushDIM+push CCT control
·Support EnergyData function and energy-reporting reading (DALI Part 252)
·Support Luminaire data reading (DALI Part251), support diagnostics-maintenance reading (DALI Part253)
·Support advanced functions such as corridorDIM, EL, CLO
·The output current programming can be realized through the DALI interfaceand the NFC interface
·Soft dimming and flicker-free at any brightness, meets the new requirements of ErP certification
·Using HPC patented technology, at any dimming level, the brightness ofthe luminaries is the same
·Dimming range 1~100%, output current accuracy 2%
·High PF, high efficiency, low THD
·Intelligent LED hot-plug protection function
·SELV and Class I design, suitable for use inside of the light
·Class II applications can be achieved by adding accessories
·Compliance with ZhagaBook 13 standards
·Compliance with CE, ENEC, UKCA,RCM, CCC, DALI-2, EL and other certifications
·IP20 protection grade,indoor use
·Nominal life-time up to 100,000 h
·5.5-year guarantee
Parameters
Model | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-DGL040E-A1050ADN | 200-240VAC | 40W | 24-42V | 0.4-1.05A | 0.97 | 87.5% | 12% | 60℃ | 90℃ | L280*W30*H21 |
Suffix DN：DALI-2 + pushDIM + pushCCT+EnergyData+EL+CLO+corridorDIM+DALI programmable+NFC programmable
Specifications
Item | Parameter |
Rated input voltage | 200-240VAC/200-240VDC |
Limited voltage | 180-264VAC/180-264VDC |
Input votage shock | 380V |
Protection type | Class | |
Output type | SELV |
Output current accuracy | 5% |
Dimming range | 1-100% |
Power on time | <0.75s |
No load output voltage | 50VDC |
Surge | L-N:2KV,L-FG/N-FG:4KV |
Flicker-free | Pst LM <1,SVM <0.4 |
Operation temperature | -25-60℃ |
Protection class | IP20 |
Life time | Normal 100,000 hours |
Warranty | 5.5 years |

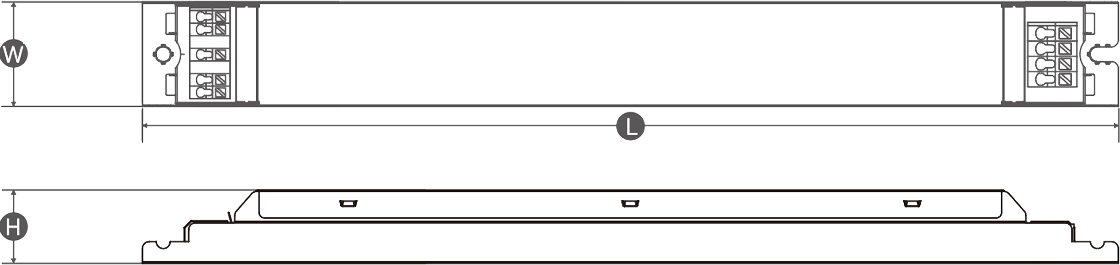

Dimension(unit:mm)

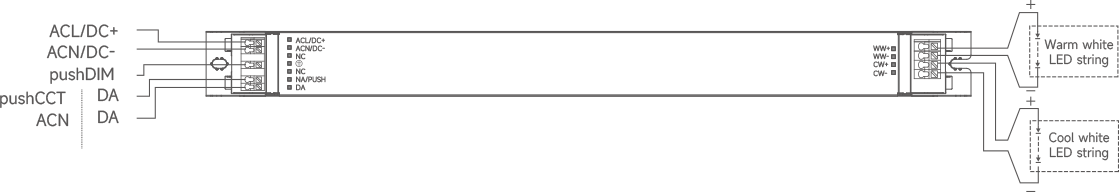

Wiring diagram
