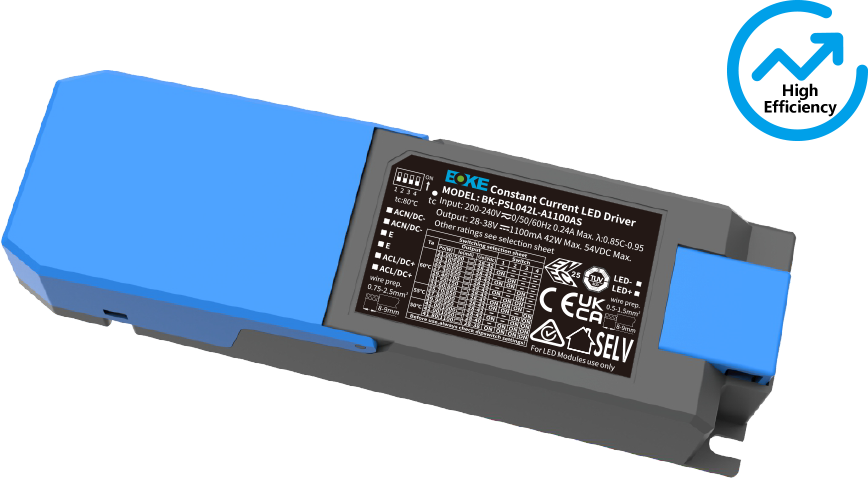

PSL(L) Series

Constant current independent driver



Features
·5/13-level current output can be realized by DIP-switch
·Flicker-free output,which meets the requirement of ErP standard
·Two-stage and isolation,more stable and safer
·Withstand 380VAC high voltage short-time shock
·Mains surge capability up to 2KV
·Screw-free design,easy wiring
·High PF,high efficiency
·Pushable strain relief design,easy to crimp and install
·Compact housing design SELV and Class ll design, suitable for use outside of the light
·Passed CE,ENEC,UKCA,RCM,CCC,EL and other certifications
·Nominal life-time up to 100,000 h
·5-year guarantee

Parameters

Model

Input voltage

Output power

Output voltage

Output current

PF

Efficiency

THD

Ta

Tc

Dimension(mm)

BK-PSL012L-A0300AS

200-240VAC

12.6W

28-42V

0.2-0.3A

0.97

89%

9%

60℃

80℃

L157.5*W45.5*H28

BK-PSL022L-A0500AS

200-240VAC

21W

28-42V

0.3-0.5A

0.96

91%

10%

60℃

80℃

L157.5*W45.5*H28

BK-PSL042L-A1100AS

200-240VAC

42W

28-42V

0.5-1.1A

0.98

92.5%

8.5%

60℃

80℃

L157.5*W45.5*H28

Specifications

Item

Parameter

Rated input voltage

200-240VAC/200-240VDC

Limited voltage

180-264VAC/200-264VDC

Input votage shock

380V

Protection type

Class ||

Output type

SELV

Output current accuracy

5%

Power on time

<0.5s

No load output voltage

50VDC

Surge

L-N:2KV

Flicker-free

Pst LM <1,SVM <0.4

Operation temperature

-20°C-60°C

Protection class

IP20

Life time

Normal 100,000 hours

Warranty

5 years

Dimension(unit:mm)

Dimension(unit:mm)

Suffix DF:DALI-2+D4i+EL+CLO+DALI programmable+NFC programmable

Datasheet-CC on off driver-BK-PSL012L-A 022L-A 042L-A suffix S V1.2 EN
