WAL(E)-A series
CC independent dimmable driver
Features
·Support XDlM dimming+12V auxiliary power
·Provide 12V 100m Aauxiliary power supply to power control module orsensor
·Auxiliary 12V support sfast power-down feature
·10-level current output can be realized DlP-switch, easier to adjust the luminaire power
·Soft dimming and flicker-free at any brightness, meets the new requirements of ErP certification
·Using HPC patented technology at any dimming level,the brightness of the luminariesis the same
·Stand by power input<0.5W, meets the ErP requirements of new certification
·High PF, high efficiency, low THD
·Screw-free and pressing type strain relief, easier install
·Independent input and output strain relief, stronger wiring
·SELV and Class II design, suitable for use side ofthe light
·Passed CE,ENEC,UKCA,RCM,EL and other certifications
·IP20 protection grade,indooruse
·Nominal life-time up to 100,000 h
·5.5-year guarantee
Parameters
Model | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-WAL022E-A0600AMV BK-WAL022E-A0600AYV | 200-240VAC | 22.8W | 24-42V | 0.225-0.6A | 0.95 | 86% | 15% | 45℃ | 90℃ | L117*W45.5*H29 |
BK-WAL040E-A1050AMV BK-WAL040E-A1050AYV | 200-240VAC | 40W | 24-42V | 0.6-1.05A | 0.97 | 88.5% | 12% | 45℃ | 90℃ | L137*W46*H30 |
BK-WAL060E-A1650AMV BK-WAL060E-A1650AYV | 200-240VAC | 62.7W | 24-42V | 1.1-1.65A | 0.97 | 89% | 7% | 45℃ | 90℃ | L157.5*W50.5*H30 |
Suffix MV：XDIN+12V
Specifications
Item | Parameter |
Rated input voltage | 200-240VAC/200-240VDC |
Limited voltage | 180-264VAC/200-264VDC |
Input votage shock | 380V |
Protection type | Class II |
Output type | SELV |
Output current accuracy | 2% |
Dimming range | 1-100% |
Power on time | <0.7s |
No load output voltage | 50VDC |
Surge | L-N:2KV |
Flicker-free | Pst LM <1,SVM <0.4 |
Operation temperature | -20-45℃ |
Protection class | IP20 |
Life time | Normal 100,000 hours |
Warranty | 5.5 years |

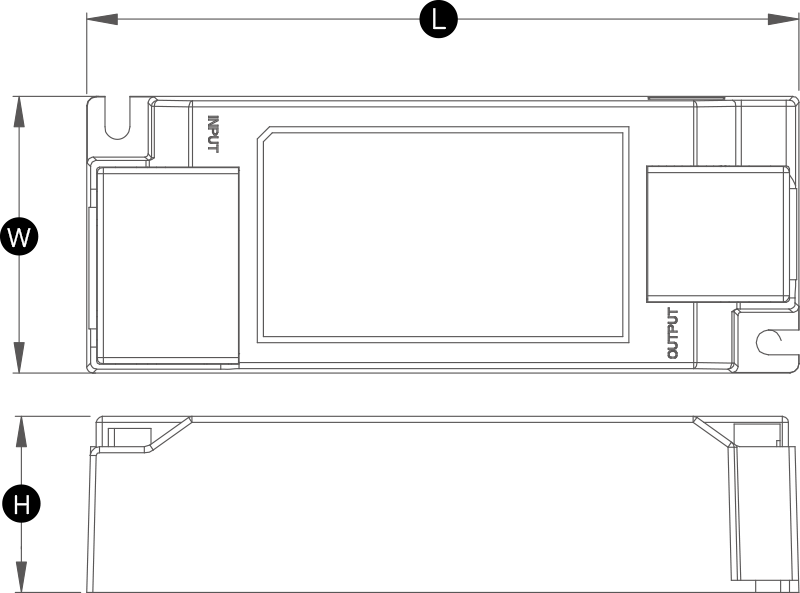

Dimension(unit:mm)
Dimension(unit:mm)
