MML Series

CC Linear dimmable driver(DT8)

Features
·Supportisolateinterface dimming1-10V/10VPWM/Rx dimming
·The output current ofthe drivercan be programming throughthe 1-10V(DlM)interface
·High PF, high efficiency, low THD
·Soft dimmingand flicker-free at any brightness, meets the new requirements of ErP certification
·UsingHPC patented technology,at any dimming level, the brightness of the lights is the same
·Suitable for working at -20-60C
·Aluminum metal housing design
·Powerinput on stand-by<0.5 W,compatible with ERP,
·lP65 design forindoor installation.
·Compliance with CE,ENEC,UKCA,RCM,CCC,EL certifications.
·Nominallife-timeup to 100,000 h
·5-year guarantee

Parameters

Model

Input voltage

Output power

Output voltage

Output current

PF

Efficiency

THD

Ta

Tc

Dimension(mm)

BK-MML022-AxxxxAMP

200-240VAC

23.1W

24-42V

0.15-0.6A

0.97

86%

7.5%

60℃

80℃

L137*W43.5*H34

BK-MML040-AxxxxAMP

200-240VAC

42W

24-42V

0.5-1.1A

0.98

87%

7%

60℃

80℃

L143*W56*H34

Suffix MP:1-10V+AOC+1-10V interfaces

Specifications

Item

Parameter

Rated input voltage

200-240VAC/200-240VDC

Limited voltage

180-264VAC/200-264VDC

Input votage shock

380V

Protection type

Class II

Output type

SELV

Output current accuracy

1%

Dimming range

1-100%

Power on time

<0.5s

No load output voltage

60VDC

Standby power

<0.5W

Surge

L-N:2KV,L-FG/N-FG:4KV

Flicker-free

Pst LM <1,SVM <0.4

Operation temperature

-20°C-60°C

Protection class

IP65

Life time

Normal 100,000 hours

Warranty

5 years

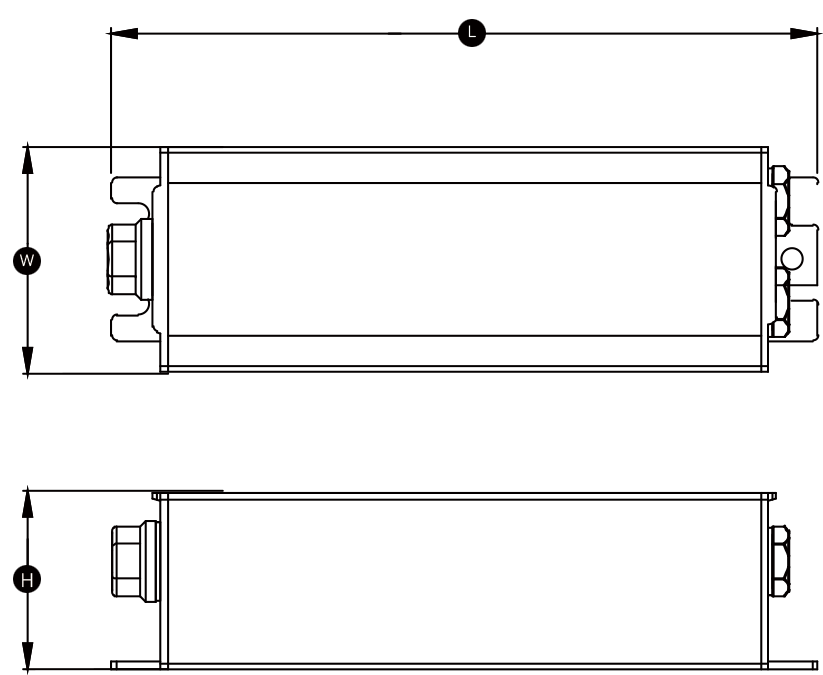

Dimension(unit:mm)

Wiring diagram

Datasheet-CC dimmable driver-BK-MML022-A 040-A suffix MP (1-10V+1-10V Programmable) V1.1 EN
