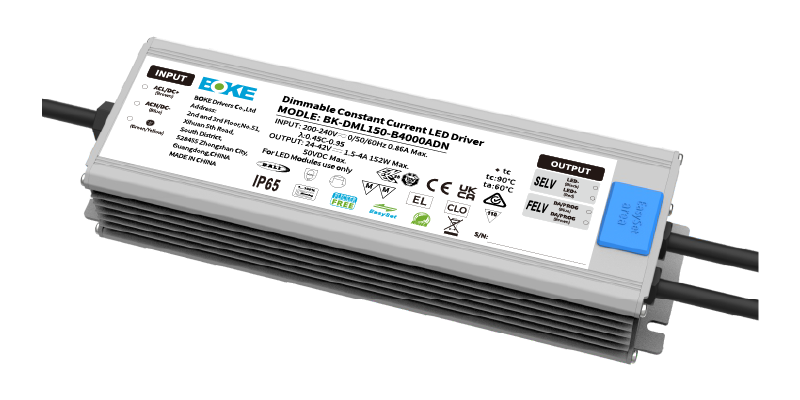

DML-B series

CC Waterproof dimmable driver(DT6)



Features
·Support DALI-2 dimming mode
·Supportadvanced functions suchas CLO
·The output currentof the driver can be programming through the DALI interface
·High PF, high efficiency, low THD
·Dimming range 1%-100%%, output currentaccuracy2%
·Soft dimming and flicker-free at any brightness, meets the new requirementsof ErP certification
·Using HPC patented technology, at any dimming level, the brightness ofthe lights is the same
·Suitable for working at -20-60°C
·Aluminum metal housing designPower input on stand-by < 0.5 W,compatible with ERP.
·LED hot-plug in protection function.
·IP65 design for indoor installation.
·Compliance with CE,ENEC,UKCA,RCM,DALI-2,CCC,EL certifications.
·Nominal life-time up to 100,000 h
·5-year guarantee

Parameters

Model

Input voltage

Output power

Output voltage

Output current

PF

Efficiency

THD

Ta

Tc

Dimension(mm)

BK-DML022-B0600ADP

200-240VAC

22.8W

12-42V

0.25-0.6A

0.97

86.5%

7.5%

60℃

90℃

L137*W43.5*H34

BK-DML022-B0600ADN

200-240VAC

22.8W

12-42V

0.25-0.6A

0.97

86.5%

7.5%

60℃

90℃

L137*W43.5*H34

BK-DML040-B1100ADP

200-240VAC

42W

12-42V

0.5-1.1A

0.98

87.5%

7.5%

60℃

90℃

L143*W56*H34

BK-DML040-B1100ADN

200-240VAC

42W

12-42V

0.5-1.1A

0.98

87.5%

7.5%

60℃

90℃

L143*W56*H34

BK-DML060-B1650ADP

200-240VAC

63W

12-42V

0.9-1.65A

0.97

88.5%

8.5%

60℃

90℃

L160*W56*H34

BK-DML060-B1650ADN

200-240VAC

63W

12-42V

0.9-1.65A

0.97

88.5%

8.5%

60℃

90℃

L160*W56*H34

BK-DML080-B2200ADP

200-240VAC

84W

12-42V

1.5-2.2A

0.97

89.5%

8%

60℃

90℃

L160*W68*H38

BK-DML080-B2200ADN

200-240VAC

84W

12-42V

1.5-2.2A

0.97

89.5%

8%

60℃

90℃

L160*W68*H38

BK-DML150-B4000ADP

200-240VAC

152W

12-42V

2.5-4A

0.98

91%

5%

60℃

90℃

L197*W68*H38

BK-DML150-B4000ADN

200-240VAC

152W

12-42V

2.5-4A

0.98

91%

5%

60℃

90℃

L197*W68*H38

Suffix DP:DALI-2+CLO+DALI programmable

Suffix DP:DALI-2+CLO+DALI programmable+NFC programmable

Specifications

Item

Parameter

Rated input voltage

200-240VAC/200-240VDC

Limited voltage

180-264VAC/200-264VDC

Input votage shock

380V

Output type

SELV

Output current accuracy

2%

Dimming range

1-100%

Power on time

<0.5s

Standby power

<0.5W

No load output voltage

<50v

Surge

L-N:2KV

Flicker-free

Pst LM <1,SVM <0.4

Operation temperature

-20°C-60°C

Protection class

IP65

Life time

Normal 100,000 hours

Warranty

5 years

Dimension(unit:mm)

Wiring diagram

Datasheet-CC dimmable driver-BK-DML-B Series suffix DP (DALI-2+CLO+DALI programmable) V1.1 EN

Datasheet-CC dimmable driver-BK-DML-B Series suffix DN (DALI-2+CLO+DALI programmable) V1.1 EN
