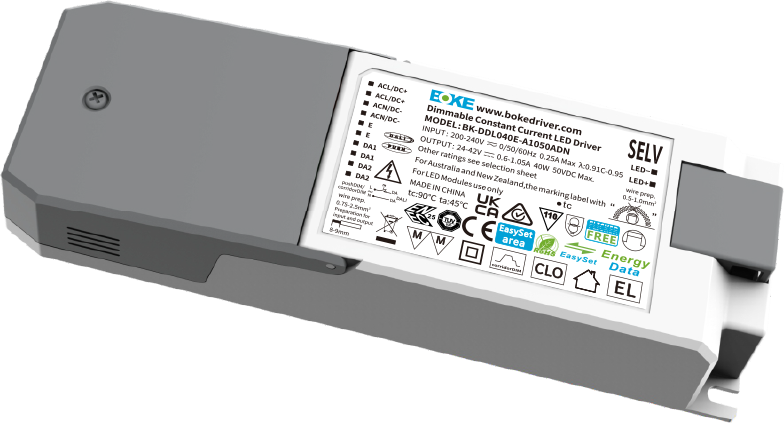

DDL(E) series

CC independent dimmable driver



Features
·Support DALl-2+pushDlM dimming mode
·Support EnergyDATA function and energy-reporting reading(DALl Part252)
·Support Luminaire data reading(DALl Part25l),support diagnostics-maintenance reading(DALl Part253)
·Support advanced functions such as corridorDlM,EL,CLO
·The output current programming can be realized through the DALl interface and the NFC interface

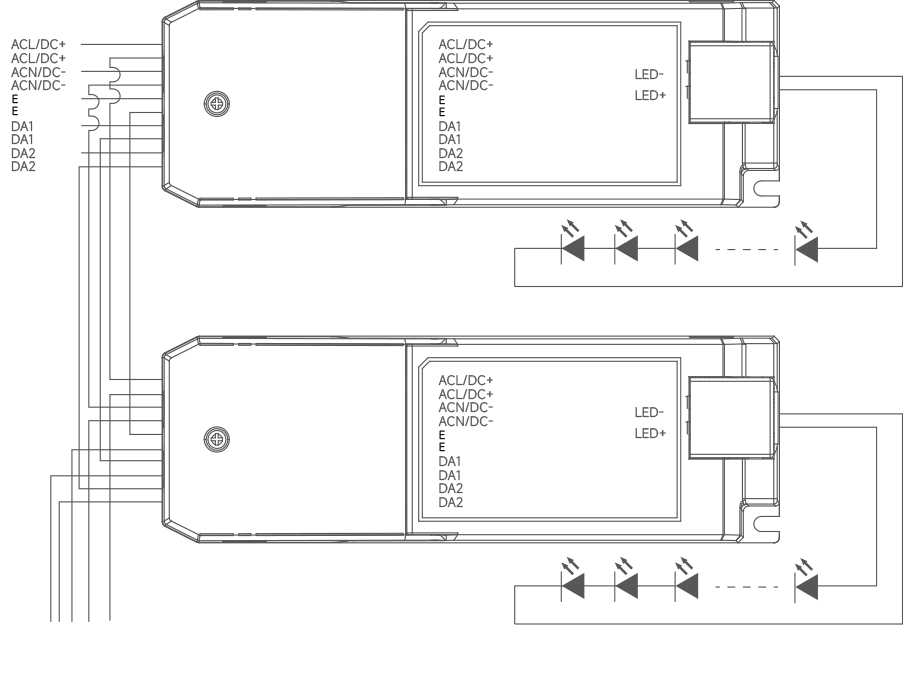

·Dualinput terminal design,Support loop-in and loop-out wiring without junction box
·Soft dimming and flicker-free at any brightness, meets the new requirements of ErP certification
·Using HPC patented technology, at any dimming level, the brightness ofthe lights is the same
·Dimming range 1~100%,output current accuracy 2%
·Standby power input<0.5W, meets the requirements of ErP certification
·High PF, high efficiency,low THD
·Screw-free and pressing type strain relief, supports thicker cables and is easier to install
·Intelligent LED hot-plug protection function
·SELV and Class ll design, suitable foruse outside of the light.
·Compliance with CE,ENEC,UKCA,RCM,CCC,DAL1-2,EL and other certifications
·lP20 protection grade, indoor use
·Nominal life-time up to 100,000 h
·5-year guarantee

Parameters

Model

Input voltage

Output power

Output voltage

Output current

PF

Efficiency

THD

Ta

Tc

Dimension(mm)

BK-DDL040E-A1050ADN

200-240VAC

40W

24-42V

0.6-1.05A

0.97

88%

12%

45℃

90℃

L172*W57.5*H30

Suffix DN:DALI-2+pushDIM+corridorDIM+EngeryDATA+AOC+EL+CLO+DALI interfaces+NFC interfaces

Specifications

Item

Parameter

Rated input voltage

200-240VAC/200-240VDC

Limited voltage

180-264VAC/180-264VDC

Input votage shock

380V

Protection type

Class II

Output type

SELV

Output current accuracy

2%

Dimming range

1-100%

Power on time

<0.7s

No load output voltage

50VDC

Surge

L-N:2KV

Flicker-free

Pst LM <1,SVM <0.4

Operation temperature

-20-45℃

Protection class

IP20

Life time

Normal 100,000 hours

Warranty

5 years

Dimension(unit:mm)

Dimension(unit:mm)

Datasheet-[CC dimmable driver]-[BK-DDL040E-A suffix DN (DALI-2+pushDIM+EnergyData+EL+CLO+corridorDIM+DALI programmable+NFC programmable) V1.0 EN]
