CTL(S)-AHC Series
CC AC in-track driver(four-wire ON/OFF)
Features
·Efficiency up to 91%, THD as low as 8.5%
·3 levels of color temperature optional by sliding switch
·16-level current output can be realized by DlP-switch
·Compatible 3-phase track system with mainstream brands and models

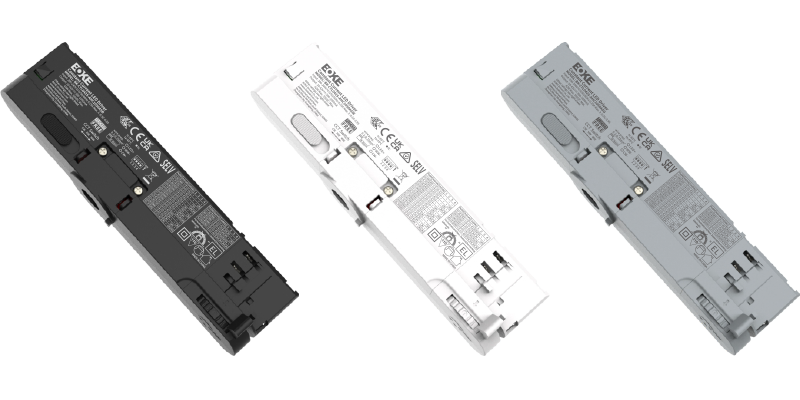

·Black, white orgray housing are optional
·Optionalaccessory M10*8 or M10*12 for mounting the luminaire head
·Flicker-free output,which meets the requirement of ErP standard
·SELV and Class II design, suitable for AC integratedtrack
·Compliance with CE,ENEC,UKCA,RCM, CCC, EL and other certifications
·IP20 protection grade, indoor use
·Nominallife-time up to 100,000 h
·5.5-year guarantee
Parameters
Mode | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-CTL042S-AHC1050ASX | 200-240VAC | 42W | 10-42V | 0.3-1.05A | 0.98 | 91% | 8% | 45℃ | 85℃ | L172*W42*H31 |
suffix SW:white
suffix SB:black
suffix SG:grey
Specifications
Item | Parameter |
Rated input voltage | 200-240VAC 200-240VDC |
Limited voltage | 180-264VAC 180-264VDC |
Input votage shock | 380V |
Protection type | Class || |
Output type | SELV |
Output current accuracy: | 5% |
Power on time | <0.5s |
Standby power: | <0.5W |
No load output voltage: | 55VDC |
Surge | L-N:2KV |
Flicker-free | Pst LM <1,SVM <0.4 |
Operation temperature | -20°C-45°C |
Protection class | IP20 |
Life time | Normal 100,000 hours |
Warranty | 5.5 years |

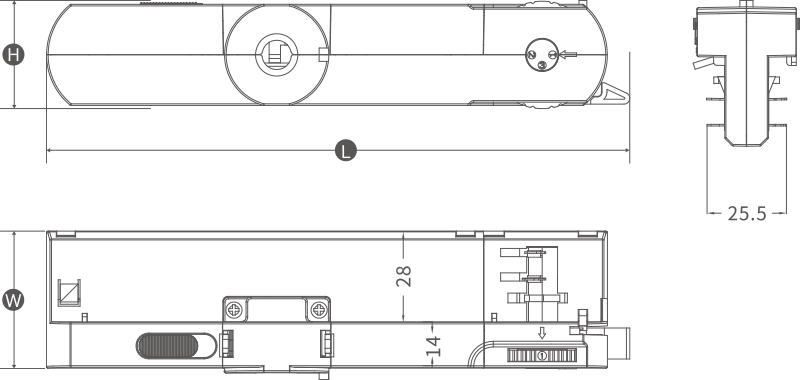

Dimension(unit:mm)

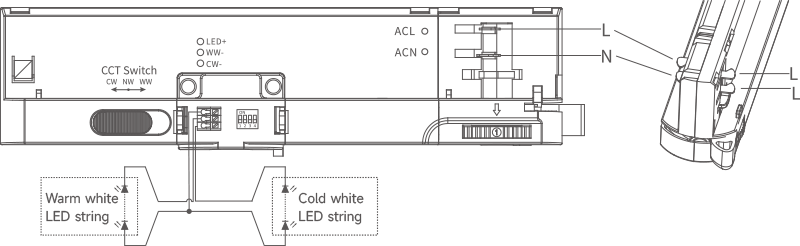

Wiring diagram
