WTL(S)-AHC Series

AC integrated track color temperature driver

  Features ·Support DALl-2+pushDlM dimming interface ·Support EnergyData function and energy-reporting reading (DALl Part 252) ·Support Luminaire data reading (DALl Part251), support diagnostics-maintenancereading (DALI Part253) ·Support advanced functions such as corridorDIM,EL,CLO ·The output current programming can be realized through the DALl interfaceand the NFC interface ·Support 20 units/batch, batch programming ·16-level current output can be realized by DlP-switch ·Soft dimming and flicker-free at any brightness,meets the new requirements of ErP certification ·Dimming range 0.1~100%, soft dimming process ·Using HPC patented technology,at any dimming level,the brightnessbetween lights is same ·Standby power input <0.5W,meets the ErP requirements of new certification ·High PF,high efficiency,low THD ·Intelligent LED hot-plug protection function ·SELV and Class ll design, suitable for indoor use ·Compliance with CE,UKCA,ENEC,RCM,CCC,DALl-2 and other certifications ·lP20 protection grade, indooruse ·Nominal life-time up to 100,000 h ·5.5-year guarantee

Parameters

Model

Input voltage

Output power

Output voltage

Output current

PF

Efficiency

THD

Ta

Tc

Dimension(mm)

BK-WTL042S-AHC1050AWCPB

BK-WTL042S-AHC1050AWCPW

BK-WTL042S-AHC1050AWCPG

200-240VAC/DC

42W

10-42VDC

0.3-1.05A

0.98

90.5%

10%

45℃

85℃

L235*W42*H31

BK-WTL042S-AHC1050AWCNB

BK-WTL042S-AHC1050AWCNW

BK-WTL042S-AHC1050AWCNG

200-240VAC/DC

42W

10-42VDC

0.15-1.05A

0.98

90.5%

10%

45℃

85℃

L235*W42*H31

Suffix WCPB WCPW WCPG：Casambi Wireless

Suffix WCNB WCNW WCNG：Casambi Wireless+EL+CLO+NFC programmable

Specifications

Item

Parameter

Rated input voltage

200-240VAC 200-240VDC

Limited voltage

180-264VAC 180-264VDC

Input votage shock

380V

Protection type

Class II

Output type

SELV

Output current accuracy:

2%

Power on time

<0.75s

Standby power:

<0.5W

No load output voltage:

59VDC

Surge

L-N:2KV

Flicker-free

Pst LM <1,SVM <0.4

Operation temperature

-20°C-45°C

Protection class

IP20

Life time

Normal 100,000 hours

Warranty

5.5 years

Dimension(unit:mm)

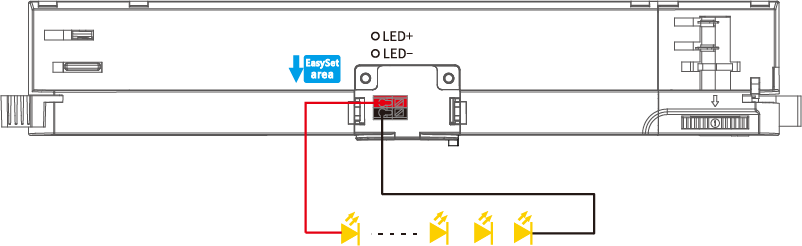

Wiring diagram

Datasheet-CC dimmable driver-BK-WTL042S-AHC suffix WCPx V1.2 EN

Datasheet-CC dimmable driver-BK-WTL042S-AHC suffix WCNx V1.2 EN
