DTL(S)-AHC Series
AC integrated track color temperature driver
Features
·Support DALl-2+pushDlM dimming interface
·Support EnergyData function and energy-reporting reading (DALl Part 252)
·Support Luminaire data reading (DALl Part251), support diagnostics-maintenancereading (DALI Part253)
·Support advanced functions such as corridorDIM,EL,CLO
·The output current programming can be realized through the DALl interfaceand the NFC interface
·Support 20 units/batch, batch programming
·16-level current output can be realized by DlP-switch
·Soft dimming and flicker-free at any brightness,meets the new requirements of ErP certification
·Dimming range 0.1~100%, soft dimming process
·Using HPC patented technology,at any dimming level,the brightnessbetween lights is same
·Standby power input <0.5W,meets the ErP requirements of new certification
·High PF,high efficiency,low THD
·Intelligent LED hot-plug protection function
·SELV and Class ll design, suitable for indoor use
·Compliance with CE,UKCA,ENEC,RCM,CCC,DALl-2 and other certifications
·lP20 protection grade, indooruse
·Nominal life-time up to 100,000 h
·5.5-year guarantee
Parameters
Mode | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-DTL042S-AHC1050ADPB BK-DTL042S-AHC1050ADPW BK-DTL042S-AHC1050ADPG | 200-240VAC | 42W | 10-42V | 0.3-1.05A | 0.98 | 90.5% | 8.5% | 45℃ | 85℃ | L235*W42*H31 |
BK-DTL042S-AHC1050ADNB BK-DTL042S-AHC1050ADNW BK-DTL042S-AHC1050ADNG | 200-240VAC | 42W | 10-42V | 0.5-1.05A | 0.98 | 90.5% | 10% | 45℃ | 85℃ | L235*W42*H31 |
Suffix DP：DALI-2+pushDIM+EL+CLO+corridorDIM+DALI programmable
Suffix DN： DALI-2+pushDIM+EnergyData+EL+CLO+corridorDIM +DALI programmable+NFC programmable
Specifications
Item | Parameter |
Rated input voltage | 200-240VAC 200-240VDC |
Limited voltage | 180-264VAC 180-264VDC |
Input votage shock | 380V |
Protection type | Class II |
Output type | SELV |
Output current accuracy: | 2% |
Power on time | <0.75s |
Standby power: | <0.5W |
No load output voltage: | 59VDC |
Surge | L-N:2KV |
Flicker-free | Pst LM <1,SVM <0.4 |
Operation temperature | -20°C-45°C |
Protection class | IP20 |
Life time | Normal 100,000 hours |
Warranty | 5.5 years |
Dimension(unit:mm)

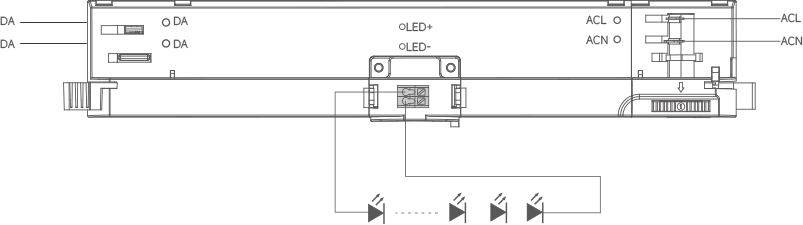

Wiring diagram
