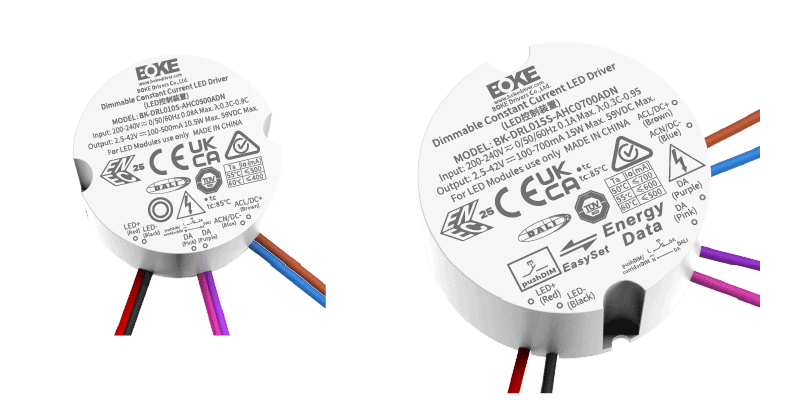

DRL(S)-AHC series
CC independent dimmable driver
Features
·Support DALI-2+pushDIM mode
·Circular compact appearance design, output wire connection
·Support EnergyData function and energy-reporting reading(DALI Part 252)
·Support Luminaire data reading(DALI Part 251), support diagnostics-maintenance reading(DALI Part 253)
·Support advanced functions such as corridorDIM,EL,CLO
·The output current programming can be realized through the DALI interface or NFC interface
·Soft dimming and flicker-free at any brightness
·Using HPC patented technology, at any dimming level, the brightness of the luminaire is the same
·High PF, high efficiency, low THD
·Intelligent LED hot-plug protection function
·SELV and Class II design, suitable for use inside of the luminaire
·5.5-year guarantee
Parameters
Model | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-DRL010S-AHC0500ADN | 200-240VAC/DC | 10.5W | 2.5-42VDC | 0.1-0.5A | 0.9C | 84% | 15% | 60℃ | 85℃ | ∅42*H21 |
BK-DRL015S-AHC0700ADN | 200-240VAC/DC | 15W | 2.5-42VDC | 0.1-0.7A | 0.96 | 86% | 11% | 60℃ | 85℃ | ∅48*H23 |
BK-DRL020S-AHC0800ADN | 200-240VAC/DC | 20W | 2.5-42VDC | 0.1-0.8A | 0.95 | 89% | 9% | 60℃ | 85℃ | ∅55*H25 |
Suffix DN： DALI-2+pushDIM+EnergyData+EL+CLO+corridorDIM +DALI programmable+NFC programmable
Specifications
Item | Parameter |
Rated voltage | 200-240VAC 200-240VDC |
Limited voltage | 180-264VAC 180-264VDC |
Overoltage protection | <380 VAC |
Protection class | Class II |
Output current accuracy | ±5% |
Dimming range | 0.1%-100% |
Power on time | <0.75s(AC start),<0.75s(DC start),<0.3s(AC/DC switchover),<0.5s(Turn off ) |
Standby power | <0.5W |
No-load voltage | N/A |
Surge | L-N:1KV(90°/270° |
Flicker-free | Pst LM <1,SVM <0.4 |
IP rating | IP40 |
Life time | Normal 100000 hours |
Warranty | 5.5 years |

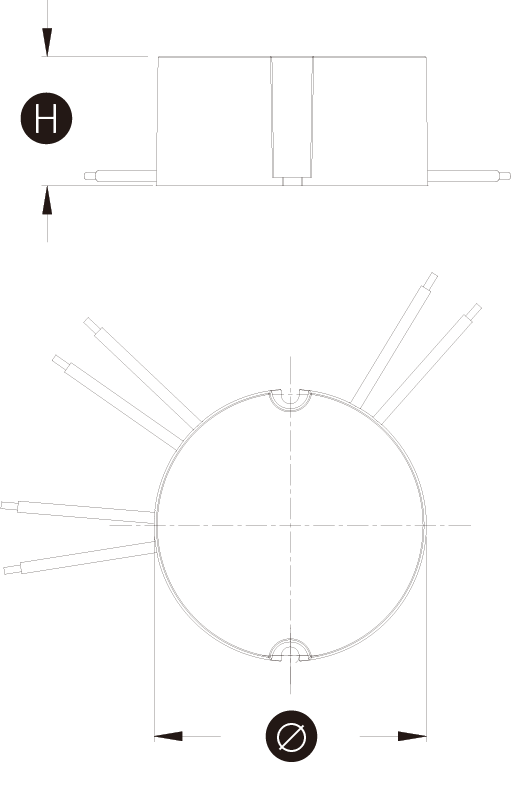

Dimension(unit:mm)

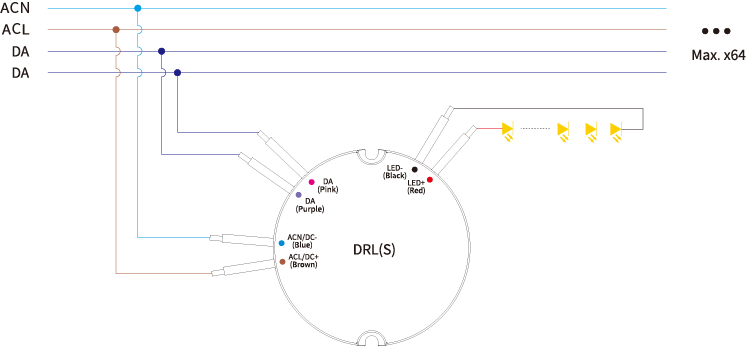

Wiring diagram
