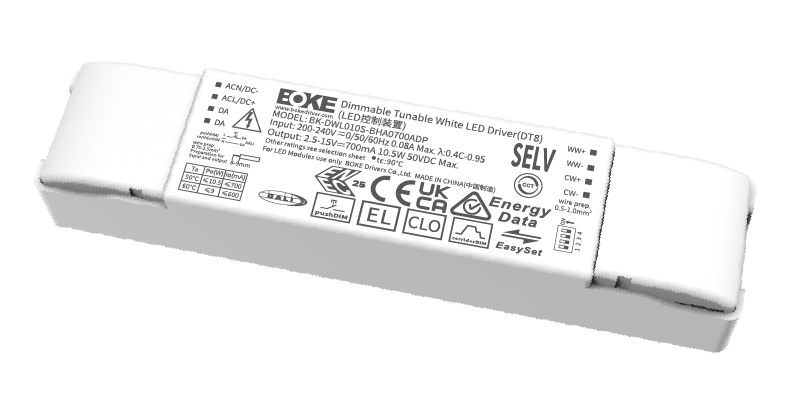

DWL(S)-BHA series
Constant current linear tunable white driver
Features
· Support DALI-2+pushDIM+pushCCT control
· Configured as a DT6 (1-channel) or DT8 (Tunable White) driver through programming
· Support EnergyData function and energy-reporting reading (DALI Part252)
· Support Luminaire data reading (DALI Part251), support diagnostics-maintenance reading (DALI Part253)
· Support advanced functions such as corridorDIM, EL, CLO
· The output current programming can be realized through the DALI interface and the NFC interface
· Soft dimming and flicker-free at any brightness
· Using HPC patented technology, at any dimming level, the brightness of the lights is the same
· Standby power input < 0.5W, meets the requirements of ErP certification
· High PF, high efficiency, low THD
· Screw-free and pressing type strain relief, supports thicker cables and is easier to install
· Intelligent LED hot-plug protection function
· SELV and Class II design, suitable for use outside of the light
· 5.5-year guarantee
Parameters
Model | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-DWL010S-BHA0700ADP BK-DWL010S-BHA0700ADN | 200-240VAC/DC | 10.5W | 2.5-42VDC | 0.1-0.7A | 0.96 | 84.5% | 9% | 50℃ | 90℃ | L283*W43*H30mm |
Suffix DP：DALI-2 DT8+pushDIM+pushCCT+EnergyData+EL+CLO+DALI programmable
Suffix DN：DALI-2 DT8+pushDIM+pushCCT+EnergyData+EL+CLO+DALI programmable+NFC programmable
Specifications
Item | Parameter |
Rated voltage | 200-240VAC 200-240VDC |
Limited voltage | 180-264VAC 180-264VDC |
Overoltage protection | <380 VAC |
Protection class | Class II |
Output current accuracy | ±5% |
Dimming range | 0.1%-100% |
Power on time | <0.7s(AC start),<0.7s(DC start),<0.3s(AC/DC switchover),<0.5s(Turn off ) |
Standby power | <0.5W |
No-load voltage | N/A |
Surge | L-N:2KV |
Flicker-free | -20-55℃/60℃ |
IP rating | IP20 |
Life time | Normal 100000 hours |
Warranty | 5.5 years |

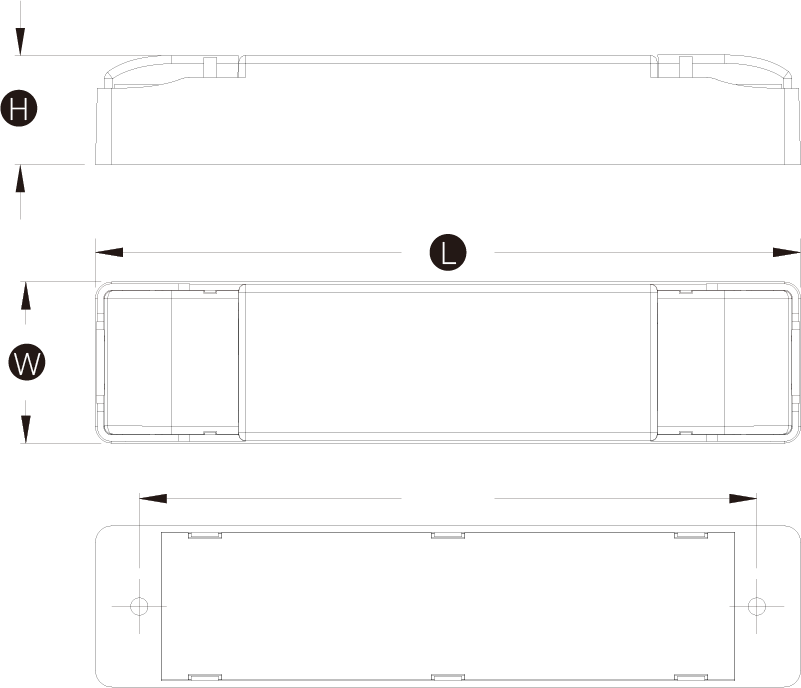

Dimension(unit:mm)
Wiring diagram
